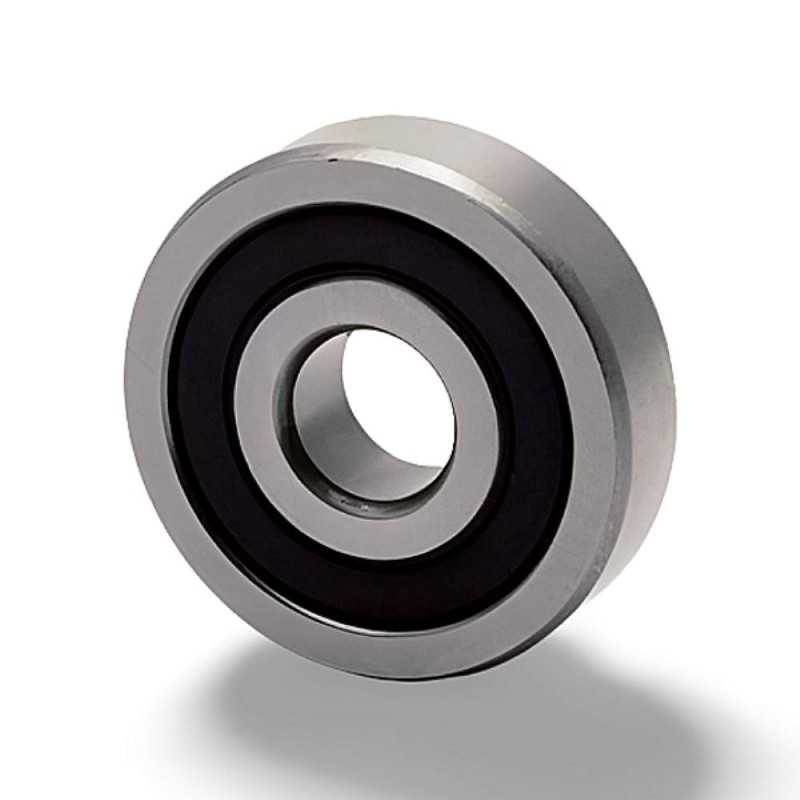

LR203-X-2RS RICH Track Roller – 17 mm x 47 mm x 12 mm

Technical Specifications:

  • Roller Type: Track Roller
  • Model Designation: LR203-X-2RS
  • Brand: RICH
  • Bore Diameter (d): 17 mm
  • Outer Diameter (D): 47 mm
  • Total Width (B): 12 mm
  • Dimensions: 17 mm x 47 mm x 12 mm
  • Outer Ring Profile: Cylindrical (not rounded)
  • Sealing: Double-sided rubber, contact type
  • Weight: 0.113 kg
  • Country of Origin: China

The LR203-X-2RS RICH is a compact track roller designed for linear motion systems, cam followers, and guide rails. With dimensions of 17 mm bore, 47 mm outer diameter, and 12 mm width, it is ideal for applications requiring precise rolling contact and lateral stability.

Its cylindrical outer ring ensures consistent surface contact, while the double-sided rubber contact seals provide effective protection against dust and moisture. Manufactured in China under the RICH brand, this roller offers a reliable and cost-effective alternative to premium components.

Key Performance Advantages:

  • Cylindrical Outer Ring: Ensures stable linear tracking and uniform contact.
  • Double Rubber Seals: Protects against contaminants and retains lubrication.
  • Compact Dimensions: 17 x 47 x 12 mm for tight assemblies.
  • Reliable Build: Engineered for smooth motion and long service life.

Transparency Note: This track roller is manufactured under the RICH brand. The code LR203-X-2RS is used solely for compatibility identification and does not imply any affiliation with other brands. The product is clearly marked with its actual brand and country of origin.

Data sheet

Inner Diameter
17
Outer Diameter
47
Width
12
Weight
0,113
