NART12UUVX RICH 12x32x15
Rating:
(0)
EUR €
- EUR €
- USD $

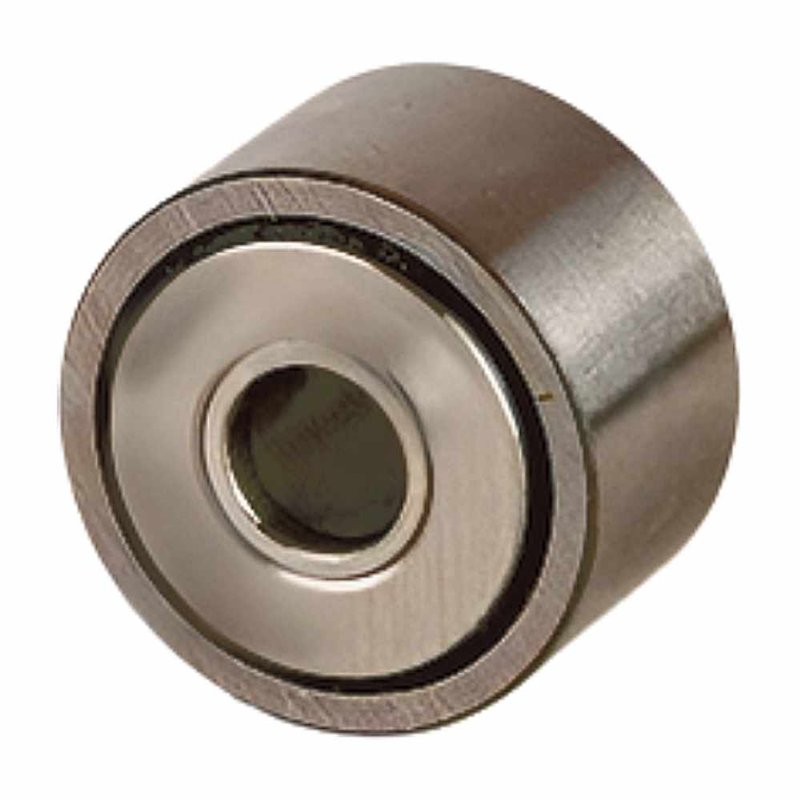

NART12UUVX RICH Yoke Roller - 12 x 32 x 15 mm
Technical Specifications:
- Brand: RICH
- Type: Yoke Roller
- Dimensions: 12 x 32 x 15 mm
- Outer Ring Width (C): 14 mm
- Weight: 0.075 kg
- Cage: None (Full Complement)
- Outer Ring Profile: (Cylindrical)
- Sealing: Double-sided rubber, contact
- Country of Origin: China
The NART12UUVX RICH is a heavy-duty yoke roller specifically designed for applications requiring high radial load capacity on flat running surfaces. This bearing is a full complement design, which means it has no cage and is filled with the maximum number of rollers, allowing it to withstand significantly higher loads than caged counterparts. It features a cylindrical (flat) outer ring, which provides maximum contact with the track, ensuring high load distribution and reduced stress. The double-sided rubber contact seals offer excellent protection against the ingress of dirt, dust, and moisture, ensuring the bearing's longevity and smooth operation in demanding environments.
Key Performance Advantages:
- High Load Capacity: The cylindrical outer ring provides a larger contact area for maximum load distribution on flat tracks.
- Effective Sealing: Double-sided contact seals provide robust protection against contaminants, extending service life.
- Robust Construction: Built to withstand rigorous applications with its cage-less, heavy-duty design.
- Optimized for Flat Tracks: The flat outer ring design is ideal for applications where misalignment is not a factor and maximum contact area is desired.
Data sheet
Inner Diameter
12
Outer Diameter
32
Width
15
Category
Yoke Roller
