NUKRE 40 RICH 22x40x20 NUKRE40 RICH
zoom_out_map
NUKRE 40 RICH 22x40x20 NUKRE40 RICH

NUKRE 40 RICH 22x40x20

Experience reliable, adjustable guidance with the NUKRE40 RICH crowned eccentric track roller.

RICH
NUKRE40
€10.90
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

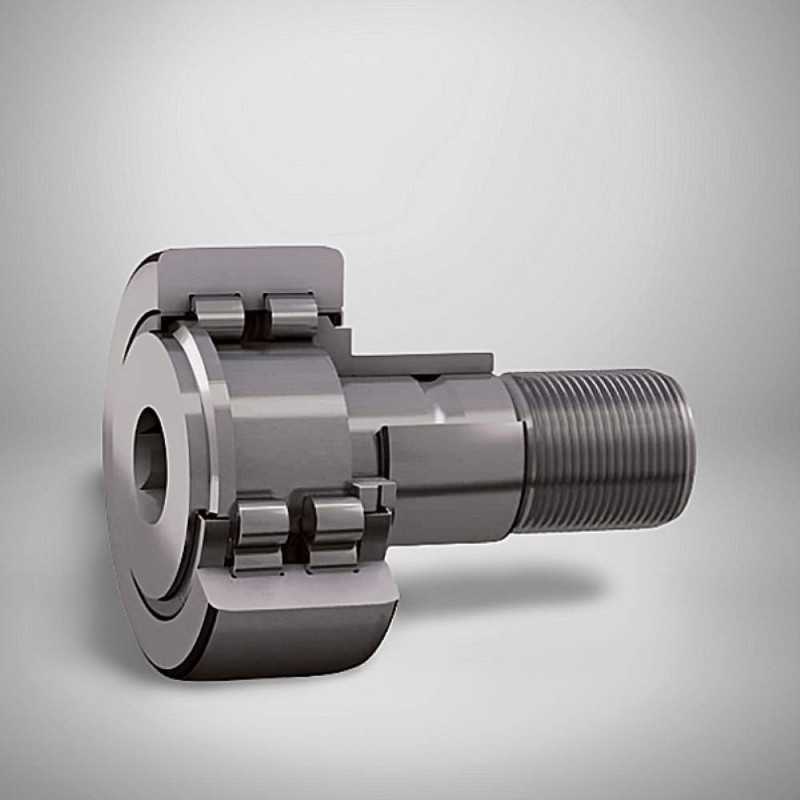

NUKRE40 RICH Eccentric Stud Type Track Roller - 22 x 40 x 20 mm, Shielded, Crowned

Technical Specifications:

  • Bearing Type: Eccentric Stud Type Track Roller
  • Model Designation: NUKRE40
  • Brand: RICH
  • Dimensions: 22 x 40 x 20 mm
  • Inner Diameter (d): 22 mm
  • Outer Diameter (D): 40 mm
  • Width (B): 20 mm
  • Bearing Length (B1): 58 mm
  • Cage Type: None (Full Complement)
  • Rounded Outer Ring: Yes (Crowned)
  • Sealing: Double-sided non-contact shields
  • Thread: M18x1.5
  • Weight: 0.301 kg
  • Country of Manufacture: China

The NUKRE40 RICH eccentric stud type track roller, proudly manufactured by RICH in China, is engineered for demanding applications requiring precise linear guidance and fine adjustments. With dimensions of 22 mm inner diameter, 40 mm outer diameter, and a width of 20 mm, this track roller has an overall bearing length of 58 mm and features an M18x1.5 thread for secure mounting. Its full complement of rolling elements ensures high load-carrying capacity, while the crowned (rounded) outer ring minimizes edge stresses and accommodates slight misalignments for exceptionally smooth running. Equipped with double-sided non-contact shields, the NUKRE40 RICH track roller provides effective protection against contaminants while reducing friction. Weighing 0.301 kg, this robust component ensures consistent and long-lasting performance in various industrial systems.

Key Performance Advantages:

  • Eccentric Stud Design: Allows for precise positional adjustment and fine-tuning in linear guidance systems.
  • Full Complement Design: Maximizes load-carrying capacity for heavy-duty applications.
  • Crown-Profiled Outer Ring: Reduces edge stresses and handles slight misalignments effectively.
  • Efficient Shielding: Double-sided non-contact shields protect against debris and retain lubrication.
  • Robust Construction: Designed for durability and extended operational life.
  • Precision Thread (M18x1.5): Ensures secure and stable installation.
  • RICH Quality: Manufactured in China to high standards, ensuring optimal performance.

Data sheet

Inner Diameter
22
Outer Diameter
40
Width
20
Weight
0,301
