CYR-1 3/8-S RICH 9,525x34,925x20,637

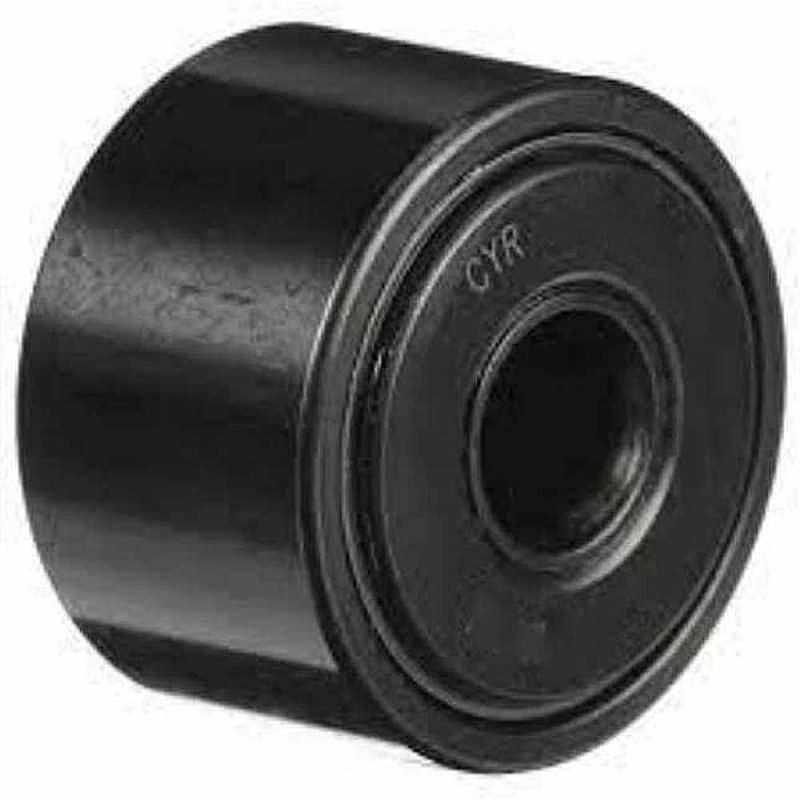

The CYR-1 3/8-S RICH is a sealed full complement yoke roller (9.525x34.925x20.637 mm) with a cylindrical outer ring for flat track surfaces.

RICH
CYR-1 3/8-S
€9.38
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

CYR-1 3/8-S RICH Yoke Roller - Cylindrical Outer Ring - 9.525 x 34.925 x 20.637 mm

Technical Specifications:

  • Brand: RICH
  • Type: Yoke Roller
  • Model: CYR-1 3/8-S
  • Dimensions (d x D x B): 9.525 x 34.925 x 20.637 mm
  • Inner Diameter (d): 9.525 mm
  • Outer Diameter (D): 34.925 mm
  • Overall Width (B): 20.637 mm
  • Outer Ring Width (C): 19.05 mm
  • Outer Ring Profile: Cylindrical (Not Rounded)
  • Sealing: Double-Sided Contact Rubber Seals (2RS equivalent)
  • Cage: None (Full Complement)
  • Weight: 0.128 kg
  • Country of Origin: China

The CYR-1 3/8-S RICH is a heavy-duty yoke roller or track roller designed for use in various linear guidance systems, conveyors, and cam drives. Manufactured by RICH, this unit features precise metric dimensions of 9.525 x 34.925 x 20.637 mm.

This specific model features a cylindrical (flat) outer ring, making it ideal for running directly on flat tracks and rails. Being a full complement design (no cage), the roller is packed with the maximum number of needle rollers, which significantly enhances its static and dynamic load carrying capacity and rigidity. Protection from the operating environment is ensured by the double-sided contact rubber seals, which effectively prevent the ingress of dirt and retain lubricant, promoting a longer, maintenance-free service life. The CYR-1 3/8-S RICH offers a compact, high-performance solution for demanding linear motion applications.

Key Performance Advantages:

  • High Load Capacity: Full complement design maximizes the number of rolling elements.
  • Effective Sealing: Double-sided contact rubber seals protect against contaminants.
  • Cylindrical Outer Ring: Optimal for use on flat track surfaces.
  • Robust Construction: Designed for demanding track and cam follower applications.

Data sheet

Inner Diameter
9,525
Outer Diameter
34,925
Width
20,637
