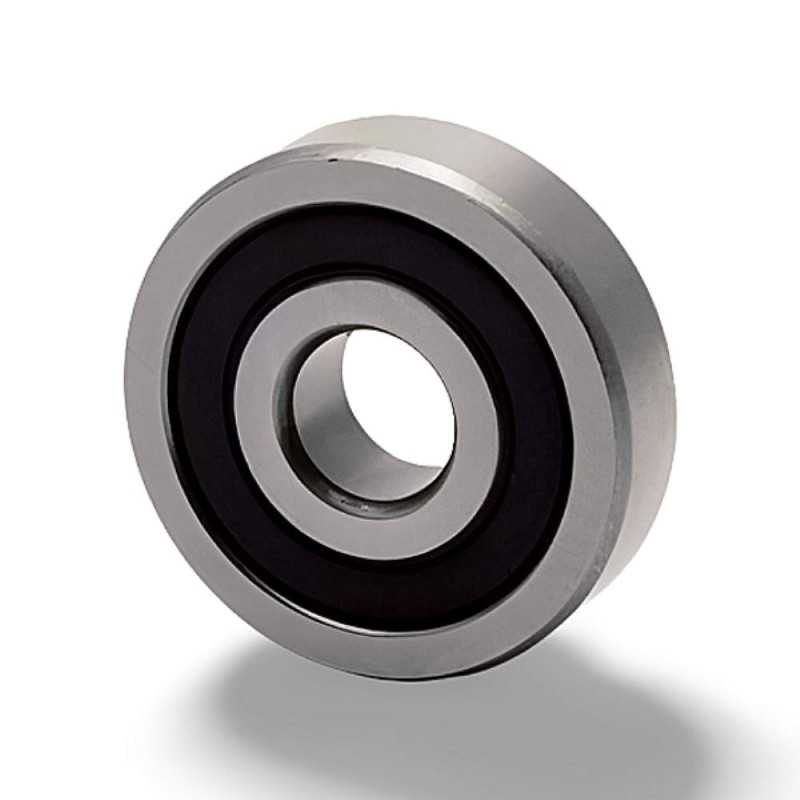

LR200-X-2RS RICH Track Roller - 10 x 32 x 9 mm with a Cylindrical Running Surface
The LR200-X-2RS RICH is a track roller specifically engineered for linear motion and cam follower applications. Its designation includes the suffix "X," indicating a cylindrical running surface. This means the outer ring of the roller is flat and cylindrical, providing maximum contact area with the guide rail for optimal load distribution and reduced pressure. Double-sided rubber contact seals (2RS) ensure excellent protection against contamination and reliable retention of lubricant. The key dimensions of this roller are a 10 mm inner diameter, a 32 mm outer diameter, and a 9 mm width. It weighs 0.042 kg and is manufactured in China.
Key Specifications:
- Type: Track Roller
- Dimensions:** 10 mm inner diameter x 32 mm outer diameter x 9 mm width
- Weight:** 0.042 kg
- Seals:** Double-sided rubber, contact (2RS)
- Outer Ring Shape: Cylindrical Running Surface (flat, not rounded)
- Country of Origin:** China
- Additional Designation: "X" indicates a Cylindrical Running Surface
Key Advantages:
- Features a cylindrical running surface (indicated by "X") for maximum contact area and superior load distribution on flat tracks.
- Effective double-sided rubber seals (2RS) provide excellent protection against dust, debris, and other contaminants, enhancing the roller's lifespan.
- Ideal for a wide range of linear motion and cam follower systems where high load capacity and even pressure distribution are crucial.
- Compact dimensions allow for easy integration into various mechanical designs.
- Ensures smooth and reliable operation.
Data sheet
Inner Diameter
10
Outer Diameter
32
Width
9
Weight
0,042
Sealing
Lip Seal On Both Sides
