• New
CBK320 RICH 20x52x30,6 CBK320 RICH
zoom_out_map
CBK320 RICH 20x52x30,6 CBK320 RICH

CBK320 RICH 20x52x30,6

Type: Stud Type Track Roller
Model: CBK320 RICH
Dimensions: 20 x 52 x 30.6 mm (Total Length 59 mm)
Brand: RICH
Origin: China
RICH
CBK320
€9.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

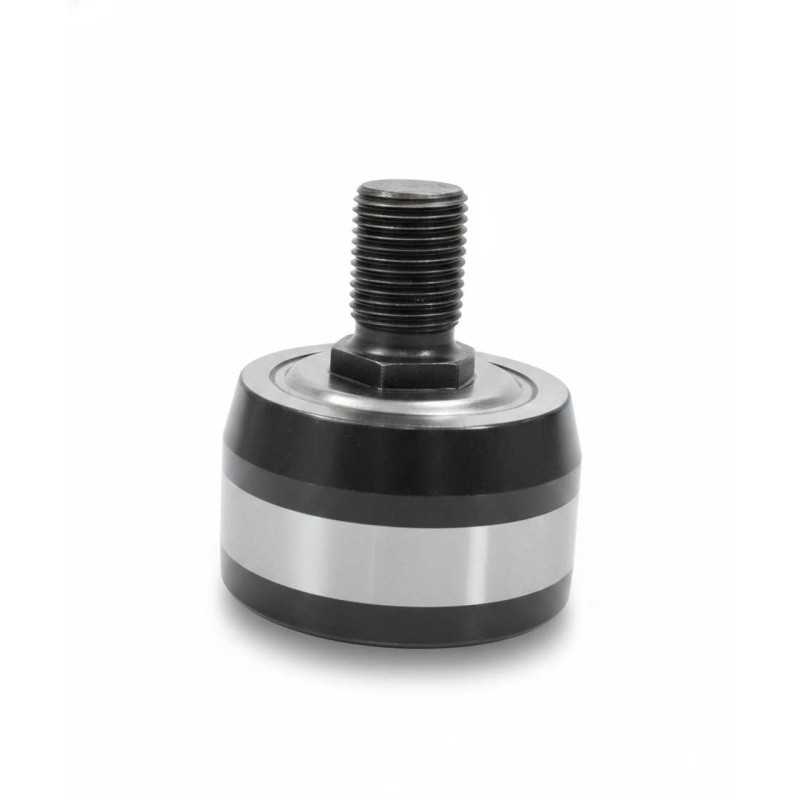

CBK320 RICH – Stud Type Track Roller – 20 x 52 x 30.6 mm

Technical Specifications:

  • Type: Stud type track roller
  • Brand: RICH
  • Model Designation: CBK320
  • Stud Diameter: 20 mm
  • Outer Diameter (D): 52 mm
  • Outer Ring Width (C): 30.6 mm
  • Total Length (B1): 59 mm
  • Outer Ring Profile: Cylindrical (Non-rounded)
  • Weight: 0.474 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Heavy-duty stud type track roller designed with a thick-walled outer ring to accommodate high radial loads and shock loads in cam drive and conveyor systems.
  • Mounting Design: Integrated solid stud with mounting threads for secure fastening, facilitating high-precision linear movement and reliable load distribution.
  • Outer Ring Geometry: Features a cylindrical outer profile (non-rounded) providing a large contact surface area for improved radial stiffness against flat track surfaces.
  • Mechanical Interface: 20 x 52 x 30.6 mm dimensional format manufactured to industrial precision standards for high-performance automation and material handling equipment.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
20
Outer Diameter
52
Width
35
Weight
0,474
