CYR-1 3/4-S RICH 12,7x44,45x26,987
Rating:
(0)
EUR €
- EUR €
- USD $

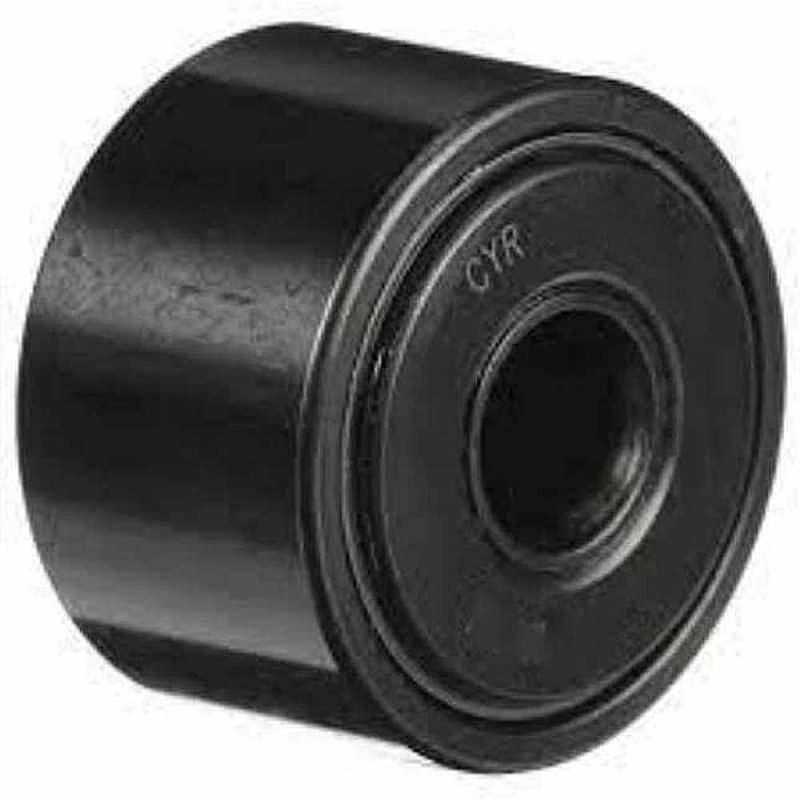

CYR-1 3/4-S RICH Yoke Roller - 12.7 x 44.45 x 26.987 mm - Contact Seals
Technical Specifications:
- Brand: RICH
- Type: Yoke Roller (Track Roller)
- Model: CYR-1 3/4-S
- Dimensions (ID x OD x W): 12.7 x 44.45 x 26.987 mm
- Outer Diameter (OD): 44.45 mm
- Outer Ring Width (C): 25.4 mm
- Roller Construction: Full complement (No cage)
- Outer Ring Profile: Cylindrical (Flat, not rounded)
- Sealing: Double-sided rubber, contact
- Weight: 0.275 kg
- Country of Origin: China
The CYR-1 3/4-S RICH Yoke Roller is a high-capacity track roller produced by RICH, engineered for demanding linear and motion control applications. With an outside diameter of 44.45 mm and an overall width of 26.987 mm, this roller is designed to be mounted directly on a shaft or stud.
Its full complement (no cage) design incorporates the maximum possible number of needle rollers, resulting in outstanding radial load capacity essential for heavy-duty cam and track applications. The cylindrical (flat) outer ring provides a large, rigid contact area, making it ideal for use on flat raceways or where high lateral stiffness is required. Protection from dirt and moisture is ensured by the double-sided contact rubber seals, which effectively retain the internal lubricant. This yoke roller is a robust solution for machinery requiring precise guidance and high durability under load.
Key Performance Advantages:
- High Load Capacity: Full complement roller design maximizes radial load handling.
- Effective Sealing: Double-sided contact rubber seals protect internals from contaminants.
- Cylindrical Outer Ring: Provides maximum surface contact for flat tracks and high stiffness applications.
- Precise Guidance: Optimized for use in cam drives, conveying, and linear motion systems.
Data sheet
Inner Diameter
12,7
Outer Diameter
44,45
Width
26,987
