  • DAC4168WHR4CS23 RICH 41x68x40 DAC4168WHR4CS23 RICH

DAC4168WHR4CS23 RICH 41x68x40

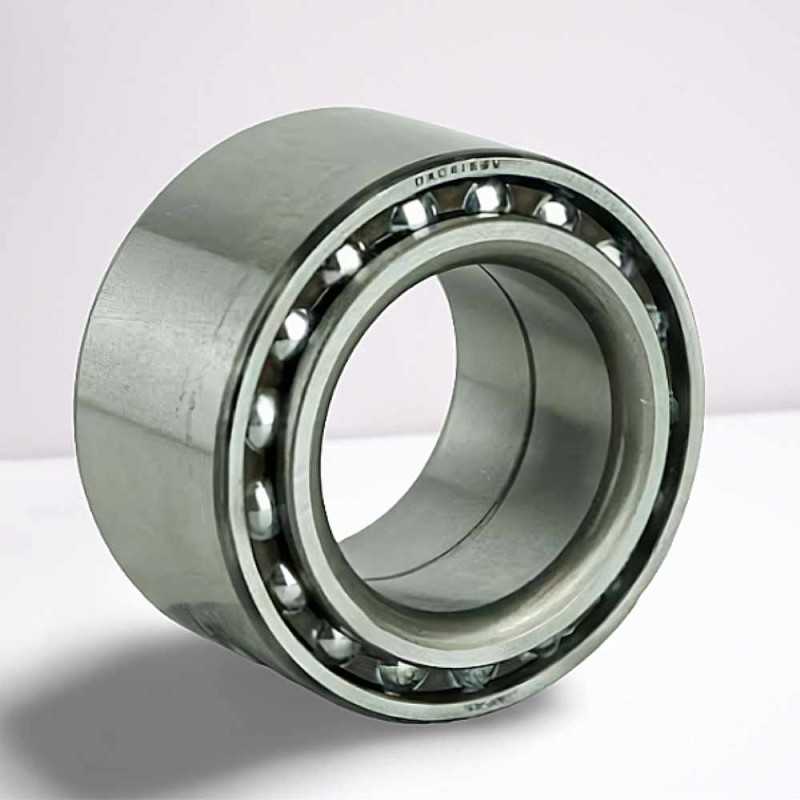

DAC4168WHR4CS23 RICH is a double row angular-contact ball bearing with polyamide cage and open format. Dimensions: 41 x 68 x 40 mm.

RICH
DAC4168WHR4CS23
€7.89
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

DAC4168WHR4CS23 RICH | Double Row Angular-Contact Ball Bearing – 41 x 68 x 40 mm

Technical Specifications:

  • Catalog Code: DAC4168WHR4CS23 RICH
  • Brand: RICH
  • Bearing Type: Angular-Contact Ball Bearing
  • Configuration: Double Row
  • Inner Diameter: 41 mm
  • Outer Diameter: 68 mm
  • Width: 40 mm
  • Full Dimensions: 41 x 68 x 40 mm
  • C (Outer Ring Width): 35 mm
  • Cage Material: Polyamide
  • Sealing: None (open format)
  • Weight: 0.469 kg
  • Country of Origin: China

Key Performance Advantages:

  • Double Row Design: Supports combined radial and axial loads with enhanced hub stability.
  • Polyamide Cage: Lightweight and low-friction for high-speed operation and reduced noise.
  • Open Format: No sealing for applications requiring direct lubrication or minimal drag.
  • RICH Quality: Manufactured to strict tolerances for long-term reliability and dimensional consistency.

Transparency Note: This bearing is manufactured directly by us under the RICH brand. The code DAC4168WHR4CS23 is used solely for compatibility identification and does not imply affiliation with any other manufacturer. The product is clearly marked with its actual brand and origin.

Data sheet

Inner Diameter
41
Outer Diameter
68
Width
40
Weight
0,469
Ball Rows
Double Row
Cage
Polyamide Cage
Category
Double Row Angular-Contact Ball Bearing
