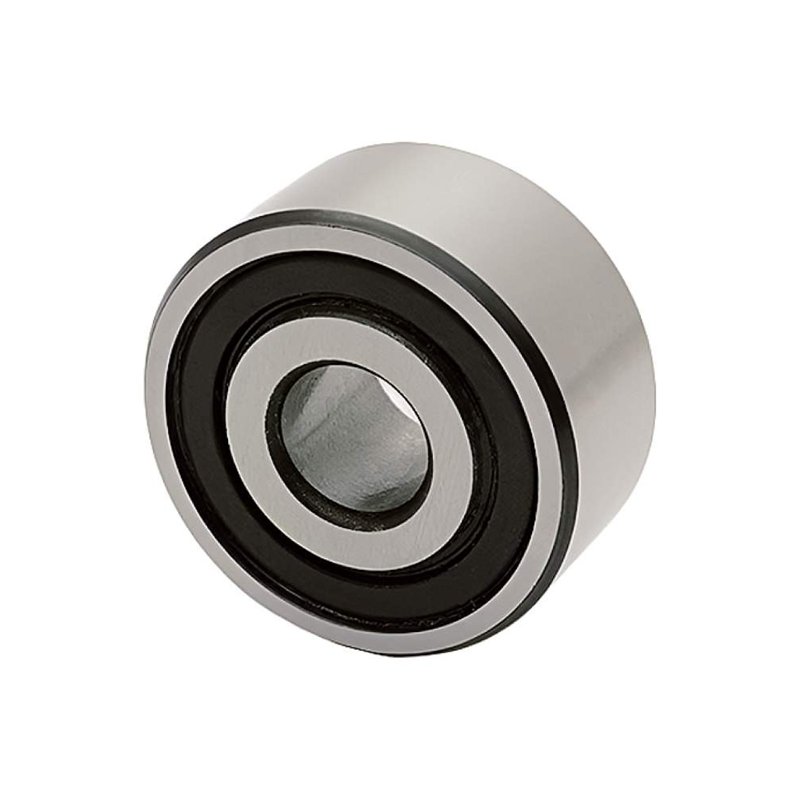

3211-2RS C3 RICH Double Row Angular Contact Ball Bearing - 55 x 100 x 33.3 mm
Technical Specifications:
- Catalog Code: 3211-2RS C3 RICH
- Brand: RICH
- Type: Double row angular contact ball bearing
- Inner Diameter: 55 mm
- Outer Diameter: 100 mm
- Width: 33.3 mm
- Sealing: 2RS (Double-sided contact rubber seals)
- Clearance: C3 (Greater than normal)
- Cage: Steel
- Weight: 0.986 kg
- Country of Origin: China
Key Performance Advantages:
- Bi-Directional Axial Support: The RICH double-row design allows the bearing to support significant axial loads in both directions, making it highly versatile for complex mechanical drives.
- Enhanced Thermal Stability: The C3 internal clearance provides extra space between the rolling elements and raceways, compensating for thermal expansion in high-temperature or high-speed environments.
- Effective Contaminant Protection: High-quality 2RS rubber contact seals ensure that lubricants are retained while preventing the ingress of dust, moisture, and debris into the bearing's internal components.
- High Radial Rigidity: The back-to-back internal arrangement offers a rigid bearing configuration capable of resisting tilting moments and maintaining shaft alignment under heavy stress.
- Maintenance-Free Operation: Pre-lubricated with high-performance grease, this sealed unit is designed for a long service life without the need for frequent re-lubrication.
Transparency Note: This bearing is manufactured under the RICH brand. The code 3211-2RS C3 is used solely for identification and does not imply affiliation with other manufacturers.
