SL 3303 2S RICH 17x47x24,2

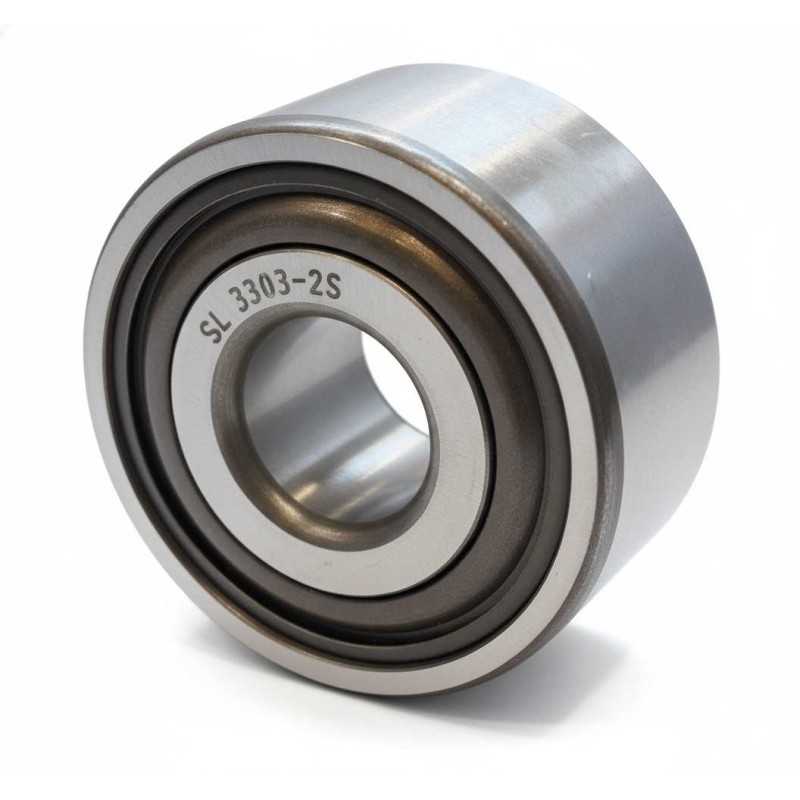

SL 3303 2S RICH – Double Row Angular Contact Ball Bearing – 17 x 47 x 24.2 mm

Technical Specifications:

• Type: Double row angular contact ball bearing
• Brand: RICH
• Model Designation: SL 3303 2S
• Inner Diameter (d): 17 mm
• Outer Diameter (D): 47 mm
• Width (B): 24.2 mm
• Outer Ring Width (C): 24.2 mm
• Sealing: Heavy-duty double-sided agricultural contact seal (2S)
• Weight: 0.202 kg
• Country of Origin: China

Construction Details:

• Components: Outer ring, inner ring, cage assembly, steel balls, and specialized double-sided agricultural contact seals.
• Configuration: Double row angular contact layout featuring reinforced sealing logic engineered for high-contamination and low-speed agricultural environments.
• Rolling Elements: Ball complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
