SL 5204 2D RICH 16,027x45,225x25,908

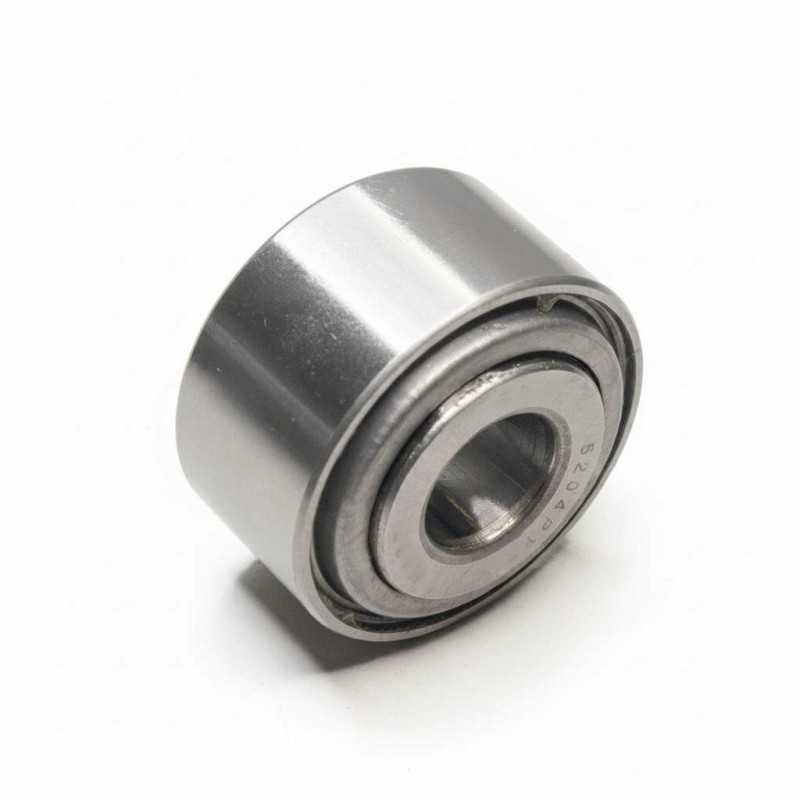

SL 5204 2D RICH – Double Row Angular Contact Ball Bearing – 16.027 x 45.225 x 25.908 mm

OE References:

• HORSCH: DAC164526
• JOHN DEERE: AA59196

Technical Specifications:

• Type: Double row angular contact ball bearing
• Brand: RICH
• Model Designation: SL 5204 2D
• Inner Diameter (d): 16.027 mm
• Outer Diameter (D): 45.225 mm
• Width (B): 25.908 mm
• Outer Ring Width (C): 22.82 mm
• Clearance: CN (Normal clearance)
• Sealing: Double-sided non-contact shield
• Weight: 0.204 kg
• Country of Origin: China

Construction Details:

• Components: Outer ring, inner ring, cage assemblies, precision steel balls, and double-sided non-contact metal shields.
• Configuration: Double row angular contact execution designed with specific internal width constraints, optimized for high radial and axial positioning accuracy in agricultural machinery layouts.
• Rolling Elements: Ball complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
