3206 2RS/C3 RICH 30x62x23,8

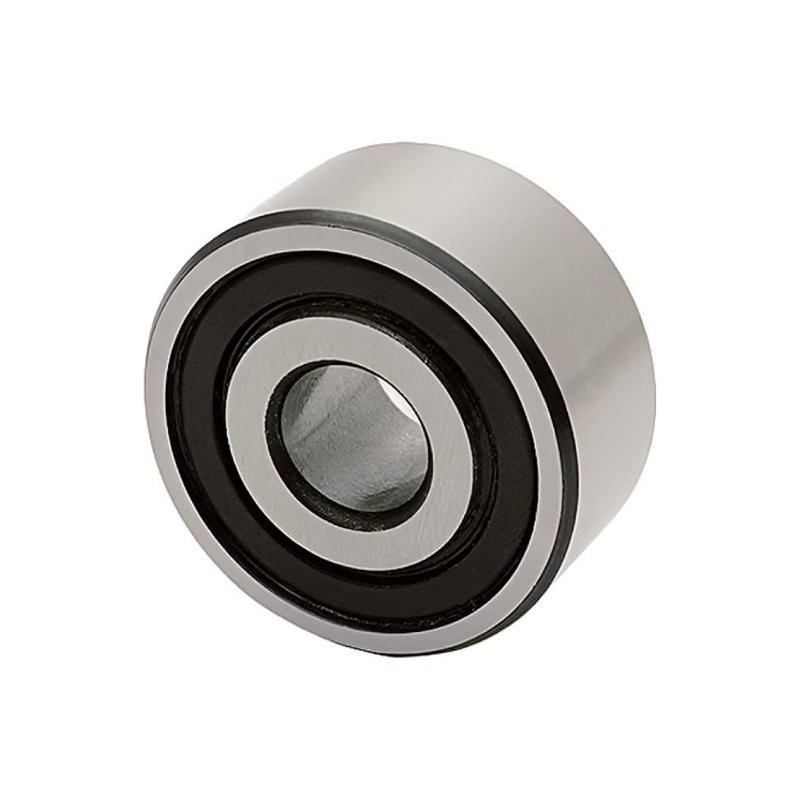

3206 2RS C3 RICH Double Row Angular-Contact Ball Bearing - 30 x 62 x 23.8 mm

The 3206 2RS C3 RICH is a high-quality double row angular-contact ball bearing, meticulously manufactured by RICH in China. This precision bearing is expertly designed to accommodate combined loads, meaning it can handle both radial and axial forces acting simultaneously. With precise dimensions of 30 mm bore, 62 mm outer diameter, and 23.8 mm width, it offers a robust and effective solution for demanding applications.

This RICH bearing features a C3 clearance, indicating a radial internal clearance greater than normal. This increased clearance is particularly beneficial for applications involving high speeds, significant temperature differences between the inner and outer rings, or where there's a need to prevent preloading during operation, ensuring optimal performance and extended bearing life. The double-row design of this bearing allows it to handle axial loads in both directions, making it highly versatile for applications where axial forces can fluctuate or reverse. A key feature of this bearing is its double-sided rubber contact seals (2RS). These seals provide excellent protection against the ingress of dust, dirt, and moisture, while also effectively retaining the internal lubricant, contributing to a longer service life and reduced maintenance in contaminated environments.

Weighing 0.292 kg, this durable component from RICH offers dependable performance and resilience. It is a direct equivalent and suitable replacement for various Known Reference Numbers, including AZ41664 CLAAS, 0002160400 CLAAS, 216040.0 CLAAS, AZ41664 JOHN DEERE, and 311258 MANITOU, ensuring wide applicability and ease of integration into existing systems. It is ideally suited for applications requiring high precision and the ability to manage combined loads in both directions, especially in environments where contamination is a concern, such as agricultural machinery, automotive components, and various industrial machines where robust and reliable operation is crucial.

Key Specifications:

• Type: Double Row Angular-Contact Ball Bearing
• Brand: RICH
• Model: 3206 2RS C3 RICH
• Dimensions: 30 mm bore x 62 mm outer diameter x 23.8 mm width
• Bore Diameter (d): 30 mm
• Outer Diameter (D): 62 mm
• Width: 23.8 mm
• Clearance: C3 - greater than normal radial internal clearance
• Sealing: Double-sided rubber, contact (2RS)
• Weight: 0.292 kg
• Country of Origin: China
• Known Reference Numbers: AZ41664 CLAAS, 0002160400 CLAAS, 216040.0 CLAAS, AZ41664 JOHN DEERE, 311258 MANITOU

Key Advantages:

• High Combined Load Capacity: Designed to efficiently handle both radial and axial loads in both directions.
• Enhanced Clearance (C3): Provides greater internal clearance for high-speed operation and thermal expansion.
• Durable Sealing (2RS): Double-sided rubber contact seals offer excellent protection against contaminants and retain lubricant, extending bearing life.
• RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.
• Reduced Maintenance: Sealed design helps minimize the need for relubrication in many applications.
• Wide Compatibility: Direct replacement for numerous Known Reference Numbers, simplifying procurement.
