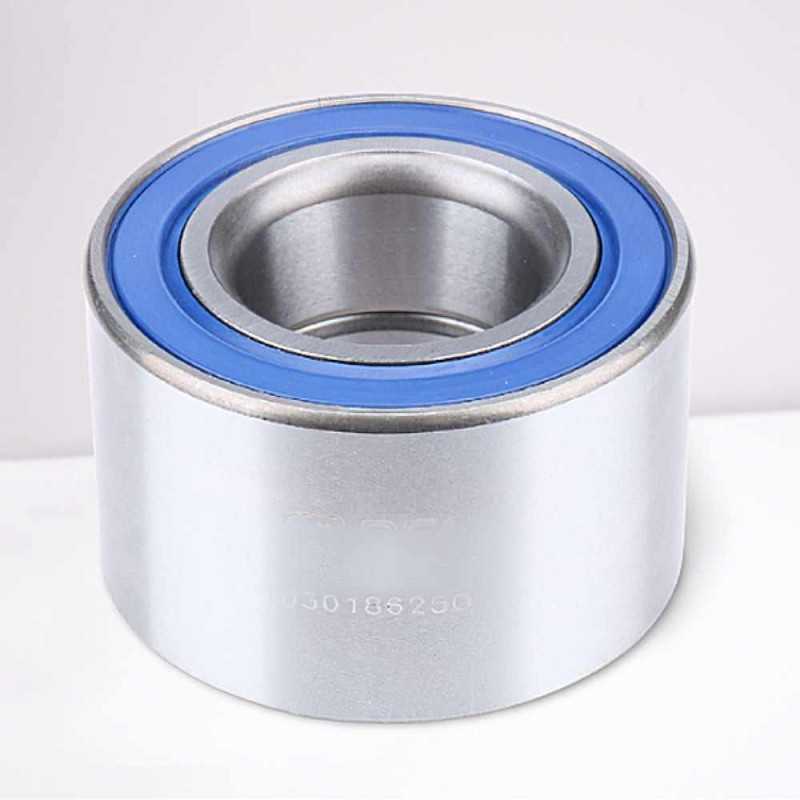

DAC30600337 RICH Double Row Angular Contact Ball Bearing – 30 × 60.03 × 37 mm
Interchangeable Part Numbers:
- A&S: WB30600337
- BBU: BCDAC30600337
- FAG: 545312, 545312A, 713 6602 50, 713 6901 40, 713 6901 60, 713 6911 00
- FERSA: AF 16001, KF 161
- INA: F-45721
- IRB: IR 8040, IR 18040
- KOYO: DAC3060W, DAC3060W-1CS780
- LUCAS: LVB633313
- SKF: 405956A, 633313C/418780, BA2B 33667 BB, BA2B 633313 C, BA2B 633667 BB, BAHB 616314, BAHB 633313 EA, GRW120, VKBA 559, VKBA 1307, VKBA 1442, VKBC 20046
- SNR: R158.07, R158.30, R172.04, GB 10790 S05, GB 10790 S07
- TIMKEN: 513116
- Vetor: 633313
Technical Specifications:
- Brand: RICH
- Type: Double row angular contact ball bearing
- Model: DAC30600337 RICH
- Inner Diameter (d): 30 mm
- Outer Diameter (D): 60.03 mm
- Width (B): 37 mm
- Sealing: 2RS (Double-sided rubber contact seals)
- Weight: 0.44 kg
- Country of Origin: China
Performance Characteristics:
- Raceway Geometry: Double row angular contact
- Sealing Configuration: 2RS (Contact type)
- Load Distribution: Supports combined radial and bidirectional axial loads
- Lubrication: Factory-filled grease
Description:
DAC30600337 RICH is a double row angular contact ball bearing with double-sided rubber contact seals. Dimensional and structural characteristics correspond to the 30 × 60.03 × 37 mm specification.
Additional Technical Data:
- Designation: DAC30600337
- Bore Type: Cylindrical
- Material: Bearing steel
Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with other manufacturers.
