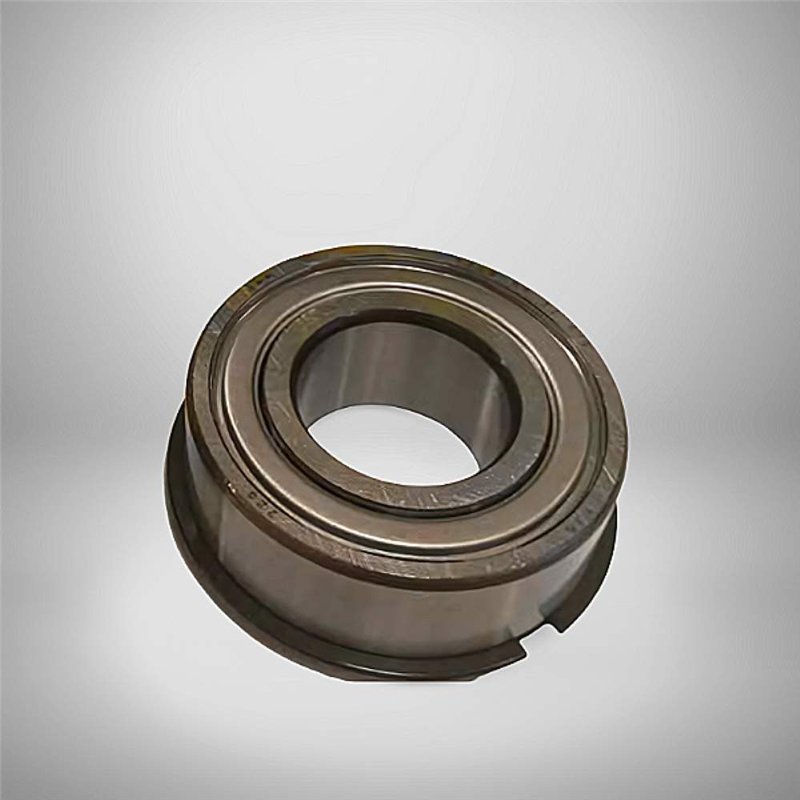

3206 2Z NR RICH 30x62x23,8

3206NRZZ RICH Double Row Angular-Contact Ball Bearing (Also Known as 5206NRZZ) - 30 x 62 x 23.8 mm

The 3206NRZZ RICH, also known as 5206NRZZ, is a high-quality double row angular-contact ball bearing, meticulously manufactured by RICH in China. This precision bearing is expertly designed to accommodate combined loads, meaning it can handle both radial and axial forces acting simultaneously. With precise dimensions of 30 mm bore, 62 mm outer diameter, and 23.8 mm width, it offers a robust and effective solution for demanding applications.

This RICH bearing features a durable steel cage, ensuring optimal ball separation and stable operation, even under varying conditions. The double-row design allows it to support axial loads in both directions, making it highly versatile for applications where axial forces can fluctuate or reverse. A key characteristic of this bearing is its double-sided non-contact shields (ZZ), which provide effective protection against dust and debris while allowing for higher rotational speeds compared to contact seals. The NR designation indicates a snap ring groove on the outer ring, facilitating secure axial location in the housing and simplifying installation.

Weighing 0.299 kg, this robust component from RICH offers reliable performance and resilience. It is ideally suited for applications requiring high precision, protection from debris, high-speed rotation, and secure axial positioning—such as in electric motors, industrial machinery, and automotive assemblies.

Key Specifications:

• Type: Double Row Angular-Contact Ball Bearing
• Brand: RICH
• Model: 3206NRZZ RICH (Also known as 5206NRZZ)
• Dimensions: 30 mm bore x 62 mm outer diameter x 23.8 mm width
• Bore Diameter (d): 30 mm
• Outer Diameter (D): 62 mm
• Width: 23.8 mm
• Cage Material: Steel
• Sealing: Double-sided non-contact shields (ZZ)
• Snap Ring Groove: Yes (NR)
• Weight: 0.299 kg
• Country of Origin: China

Key Advantages:

• High Combined Load Capacity: Designed to efficiently handle both radial and axial loads in both directions.
• Durable Steel Cage: Ensures robust performance and extended service life.
• RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance.
• Shielded Design (ZZ): Offers protection from larger contaminants while supporting higher operational speeds.
• Snap Ring Groove (NR): Facilitates easier and more precise axial positioning and retention within a housing.
• Versatile Naming: Also known as 5206NRZZ for broader compatibility and easier cross-referencing.
