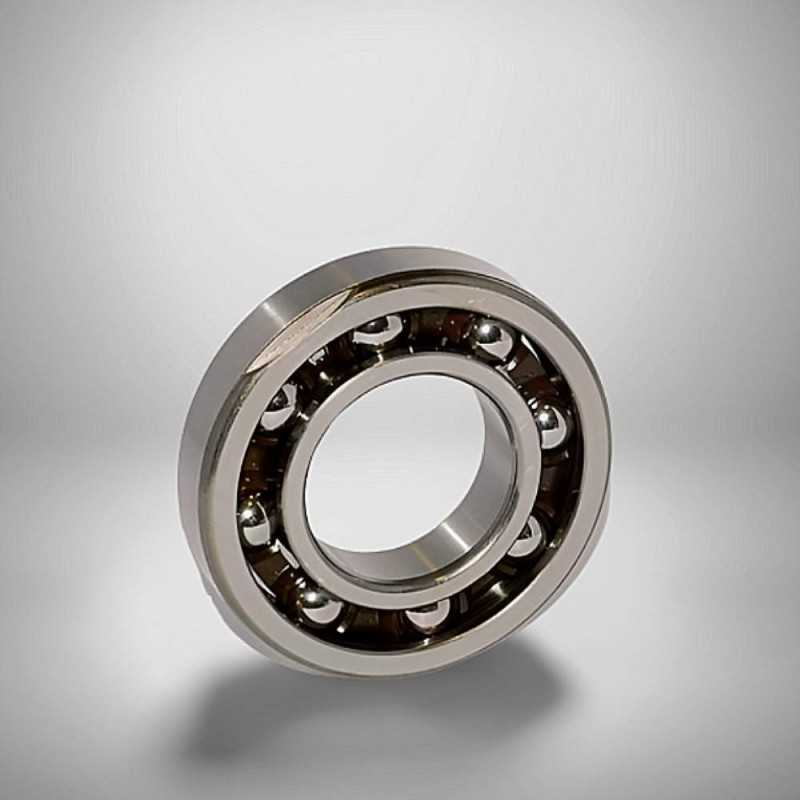

RD-307217-3 (DG3072173SH6CS32) RICH 30x72x17

RD-307217-3 RICH – 30x72x17 mm – Single Row Deep Groove Ball Bearing – Open Type with Outer Ring Groove

Technical Specifications:

• Type: Single Row Deep Groove Ball Bearing
• Brand: RICH
• Model Designation: RD-307217-3 RICH
• Inner Diameter (d): 30 mm
• Outer Diameter (D): 72 mm
• Width (B): 17 mm
• Outer Ring Width (C): 16 mm
• Inner Ring Width: 16 mm
• Cage Material: Steel
• Sealing: Open (None)
• Groove on Outer Ring: Yes
• Weight: 0.315 kg
• Country of Origin: China
• OE References: 91004-RM5-004 HONDA, 91004-RM5-0040 HONDA, 91004-PPP-004 HONDA, 91004-PPP-014 HONDA
• Interchange: DG 307217-3 SH6 CS32 KOYO

The RD-307217-3 RICH single row deep groove ball bearing is a precision-engineered component designed for applications requiring robust support and specific mounting features, especially those with OE compatibility requirements. Manufactured by RICH, this bearing features precise 30x72x17 mm dimensions and weighs 0.315 kg, offering dependable performance for smooth rotation and efficient load handling.

As an open type bearing, the RD-307217-3 RICH allows for easy lubrication and visual inspection, making it suitable for environments where regular maintenance is performed or where the bearing is protected from contaminants by the application's design. It is equipped with a durable steel cage that ensures optimal ball guidance and robust stability during operation, contributing to the bearing's overall reliability. A key feature of this bearing is the groove on its outer ring, which facilitates easier axial positioning and retention using a snap ring (circlip), simplifying assembly in various housing designs. With an outer ring width of 16 mm and an inner ring width of 16 mm, this bearing provides stable support. This bearing is also recognized by multiple OE References: 91004-RM5-004 HONDA, 91004-RM5-0040 HONDA, 91004-PPP-004 HONDA, and 91004-PPP-014 HONDA, and can interchange with DG 307217-3 SH6 CS32 KOYO. Proudly produced in China, the RD-307217-3 RICH bearing guarantees consistent quality, high efficiency, and exceptional durability, making it an excellent choice for automotive systems, electric motors, and other industrial machinery where precise dimensions, outer ring groove, and OE compatibility are crucial.

Key Advantages:

• Integrated Outer Ring Groove: Facilitates easy and secure axial positioning during mounting.
• Durable Construction: Features a robust steel cage for reliable, long-lasting operation.
• Open Design: Allows for easy lubrication and inspection.
• OE & Interchange Compatibility: Direct replacement for multiple Honda OE parts and interchangeable with KOYO.
• A RICH product, symbolizing consistent quality and reliable performance, made in China.
