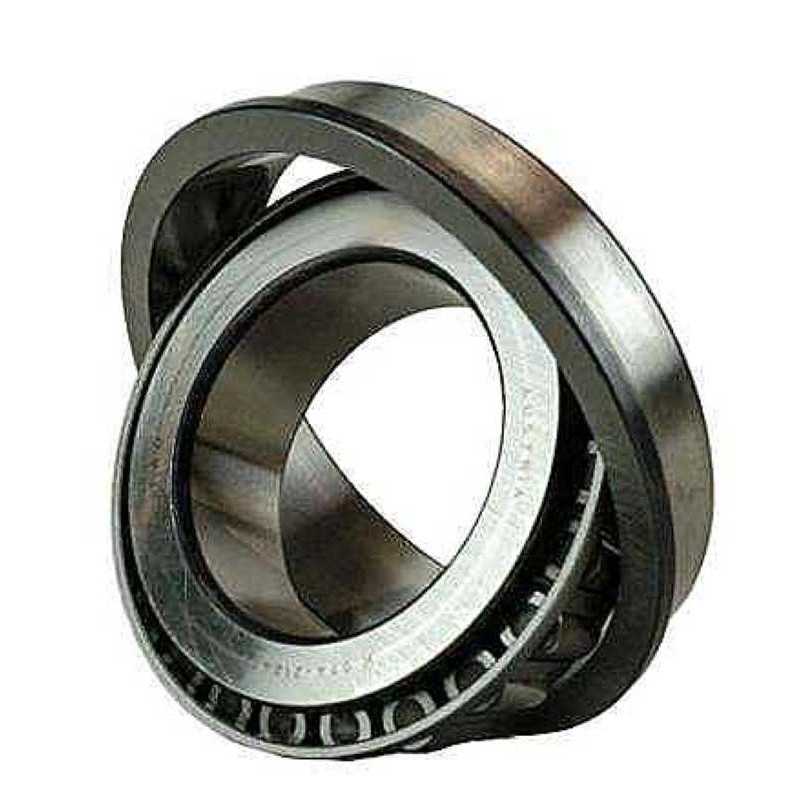

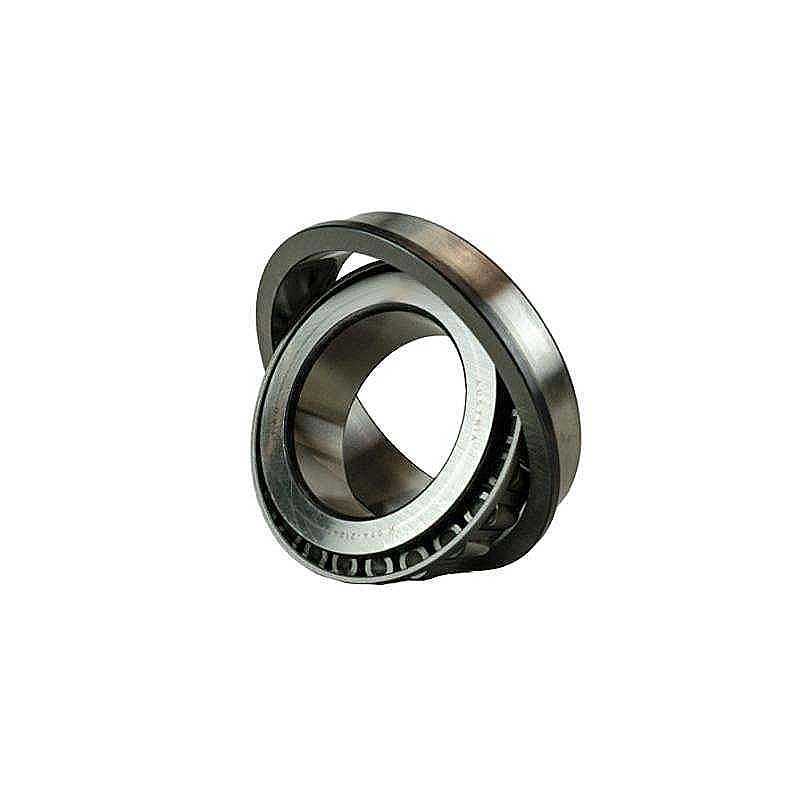

568742 RICH Tapered Roller Bearing with Flange - 80 x 140 x 18 mm
OE References:
- MAN: 06324990191
- ZF: 0750117402
- DAF: 1330399
- DAF: 0735371743
- DAF: 0750117402
- DAF: 0750117678
Technical Specifications:
- Catalog Code: 568742 RICH
- Brand: RICH
- Type: Tapered roller bearing with flange
- Bore Diameter (d): 80 mm
- Outer Diameter (D): 140 mm
- Flange Diameter (D1): 149 mm
- Total Width (T): 18 mm
- Inner Ring Width (B): 35 mm
- Outer Ring Width (C): 28.5 mm
- Cage Material: Steel, guided by rolling elements
- Weight: 2.47 kg
- Country of Origin: China
Key Performance Advantages:
- Heavy-Duty Flanged Design: The integrated 149 mm flange on the outer ring ensures precise axial positioning and simplified mounting in transmission housings or wheel hubs.
- High Torque Transmission: Optimized for heavy commercial vehicles and industrial gearboxes (ZF/MAN/DAF), offering superior resistance to both radial and heavy axial thrust.
- Robust Steel Cage: The rolling-element-guided steel cage provides high structural integrity and consistent performance under extreme thermal and mechanical stress.
- Extended Service Life: Manufactured with premium-grade steel to reduce wear and friction, ensuring long-term reliability in demanding drivetrain applications.
Transparency Note: This product is manufactured under the RICH brand. The code 568742 and provided OE references are used for identification and compatibility purposes and do not imply affiliation with the original equipment manufacturers.
