SS UCF 218 RICH

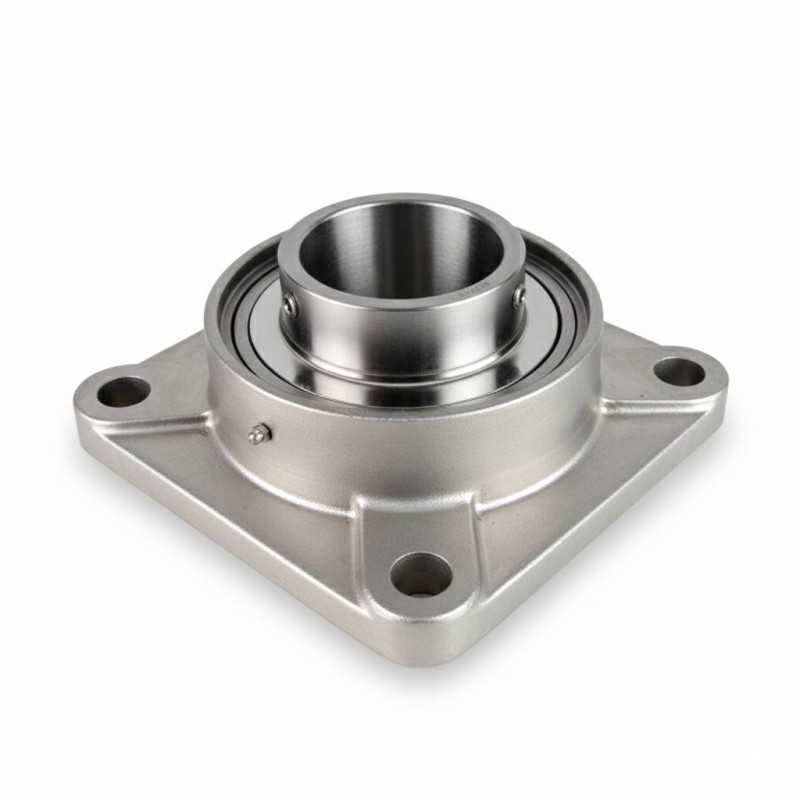

Stainless Steel Ball Bearing Unit – SS UCF 218

Technical Specifications:

• Type: Stainless steel ball bearing unit
• Brand: RICH
• Model Designation: SS UCF 218
• Inner Diameter (d): 90 mm
• Mounting Distance (J): 187 mm
• Total Length (L): 235 mm
• Total Height (A): 68 mm
• Base Thickness (A1): 26 mm
• Material: Stainless steel
• Sealing: Double‑sided lip seal with protective plate
• Rounded Outer Ring: Yes
• Weight: 9.605 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Four‑bolt flange unit designed for stainless steel applications.
• Material Type: Corrosion‑resistant stainless steel suitable for demanding environments.
• Internal Geometry: Insert bearing with machined raceways for stable rotation.
• Dimensional Format: Unit configuration based on 90 mm bore and 235 mm housing length.

Transparency Note:

This bearing unit is manufactured under the RICH brand. Dimensional values are provided solely for identification and do not imply compatibility with specific equipment or manufacturers.
