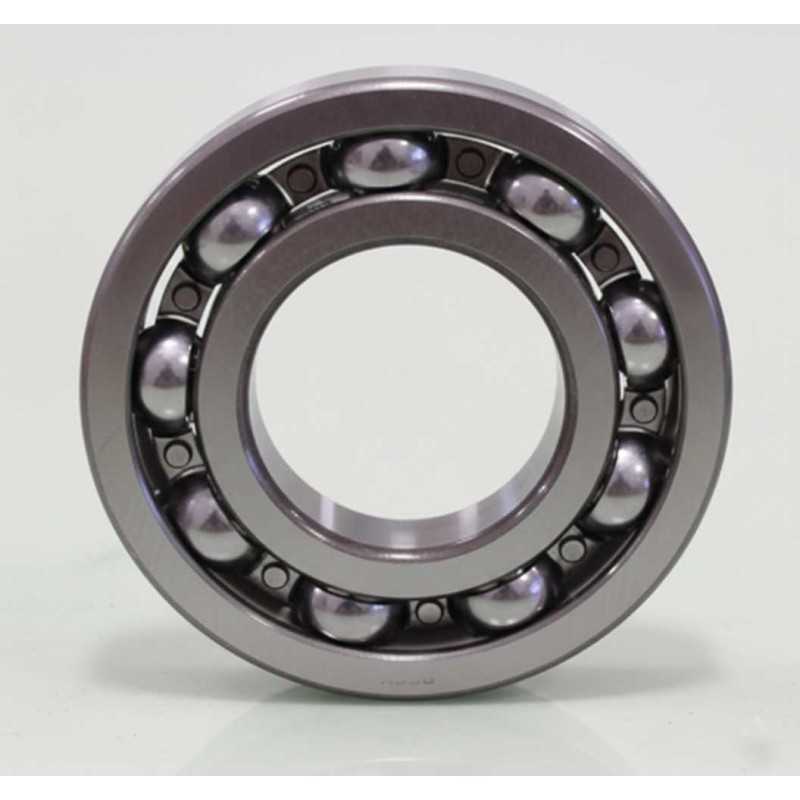

B35-137 C3 RICH Single Row Deep Groove Ball Bearing – 35 × 72 × 15 mm
The B35-137 C3 RICH is a single row deep groove ball bearing with a 35 × 72 × 15 mm dimensional format. It incorporates a C3 radial internal clearance classification associated with temperature-related dimensional variation.
Technical Specifications:
- Brand: RICH
- Type: Single row deep groove ball bearing
- Model: B35-137 C3 RICH
- Inner Diameter (d): 35 mm
- Outer Diameter (D): 72 mm
- Width (B): 15 mm
- Internal Clearance: C3 (Slightly Increased)
- Sealing: Open (None)
- Weight: 0.26 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Radial load arrangement with allowance for axial forces in both directions
- Thermal Classification: C3 clearance associated with thermal expansion behavior
- Structural Layout: Open design configured for high-speed rotational stability
- Material Type: High‑carbon chrome bearing steel
- Application Interface: Associated with drivetrain and industrial assemblies utilizing the same dimensional format
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
