PF209 RICH

Type: Pressed Steel Round Flange Housing
Model: PF209 RICH
Outer Diameter (D): 149.2 mm
Bolt Circle (D2): 120.5 mm
Brand: RICH
Origin: China
RICH
PF209
€2.97
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

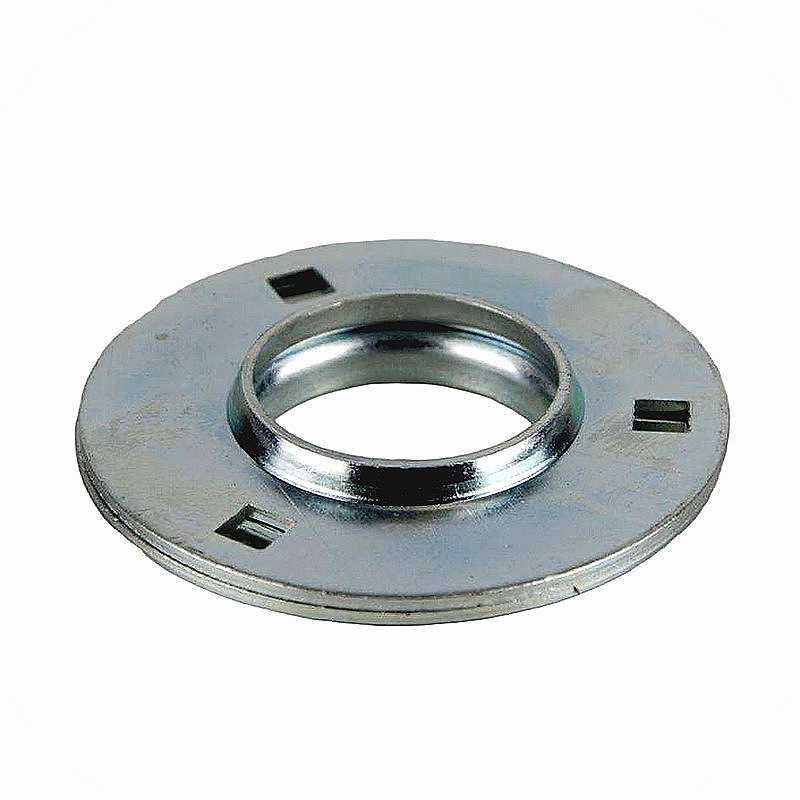

PF209 RICH Pressed Steel Round Flange Housing - 149.2 mm Diameter

Technical Specifications:

  • Catalog Code: PF209 RICH
  • Brand: RICH
  • Type: Pressed steel housing (Two-piece round flange)
  • Outer Diameter (D): 149.2 mm
  • Bolt Circle Diameter (D2): 120.5 mm
  • Total Width (A): 10 mm
  • Flange Thickness (A1): 3.5 mm
  • Bolt Hole Size (N): 13.5 mm
  • Weight: 0.68 kg
  • Country of Origin: China

Product Overview:

The PF209 RICH is a heavy-duty circular flange housing manufactured from high-strength pressed steel. Specifically designed to accommodate 209 series insert bearings (typically featuring a 45 mm bore), this housing provides a reliable and lightweight mounting solution for industrial and agricultural applications. The housing is constructed from two interlocking stamped steel plates that securely cradle the bearing in a round flange configuration. Its circular design ensures that radial loads are distributed uniformly across the mounting surface, enhancing the stability of the entire assembly. The internal profile is spherically contoured, allowing the inserted bearing to self-align and effectively compensate for minor shaft deflections or assembly misalignments. With a total diameter of 149.2 mm, the PF209 is a robust alternative to cast iron housings, offering significant weight savings and ease of installation for conveyors, material handling systems, and large-scale ventilation units.

Key Performance Advantages:

  • Uniform Radial Support: The circular three or four-bolt pattern provides balanced stress distribution, protecting the mounting structure from localized fatigue.
  • Self-Alignment Support: Facilitates the swiveling motion of spherical insert bearings to ensure smooth shaft rotation and reduced internal mechanical stress.
  • Compact Low-Profile Design: The thin-gauge pressed steel construction allows for integration into machinery where axial space is restricted.
  • Cost-Effective Durability: High-tensile steel construction with a protective finish offers a long service life at a competitive price point.

Transparency Note: This housing is manufactured under the RICH brand. The code PF209 is used for identification purposes and does not imply affiliation with other manufacturers.
