UCFL305 RICH

Type: Cast Iron Flange Bearing Unit
Model: UCFL305 RICH
Dimensions: 25 mm Bore / 150 mm Length
Brand: RICH
Origin: China
RICH
UCFL305
€7.68
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

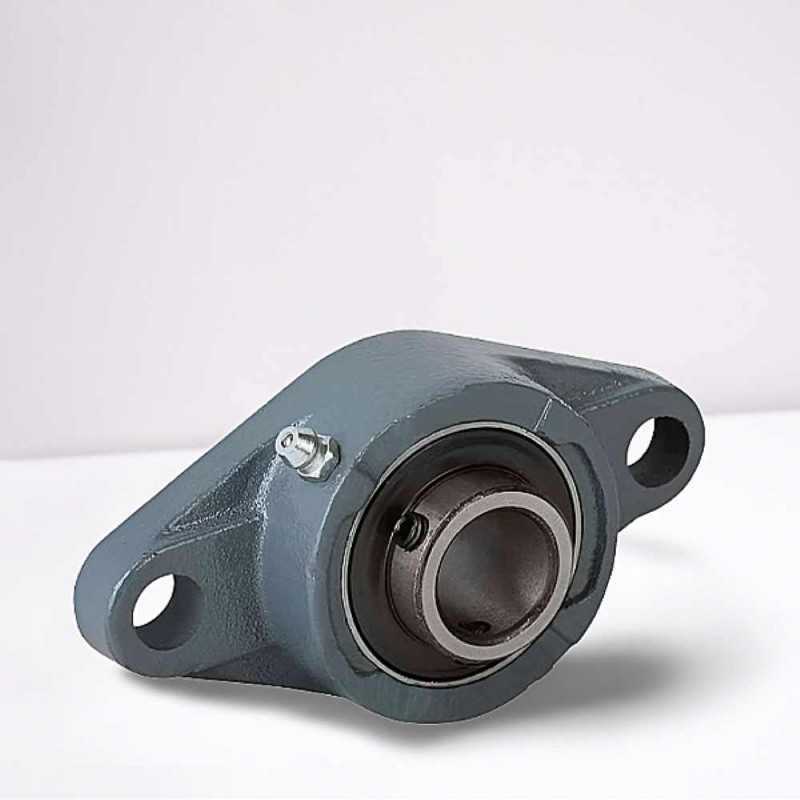

RICH UCFL305 Cast Iron Flange Bearing Unit – 25 × 150 × 80 mm

Technical Specifications

  • Product Type: Cast Iron Flange Bearing Unit (2-Bolt)
  • Model: UCFL305
  • Bore Diameter (d): 25 mm
  • Overall Length (L): 150 mm
  • Overall Width (L2): 80 mm
  • Housing Width (A): 29 mm
  • Flange Thickness (A1): 13 mm
  • Bolt Hole Distance (J): 113 mm
  • Weight: 0.93 kg
  • Country of Origin: China

Technical Notes

  • Cast iron 2-bolt flange housing for fixed mounting applications.
  • Compatible with UC305 insert bearing (not included in supplier data).
  • Standard UCFL geometry with spherical seating for initial misalignment.
  • Dimensions based on supplier-provided values.

Transparency Note: This bearing unit is manufactured under the RICH brand. Dimensions and references are provided exclusively for identification and compatibility.

Data sheet

Inner Diameter
25
Outer Diameter
0
Width
0
