1205 TV RICH 25x52x15 1205TV RICH

1205 TV RICH 25x52x15

Type: Self-Aligning Ball Bearing
Model: 1205 TV RICH
Dimensions: 25 x 52 x 15 mm
Cage: Polyamide (TV)
Clearance: CN Normal
Brand: RICH
Origin: China
RICH
1205TV
€1.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

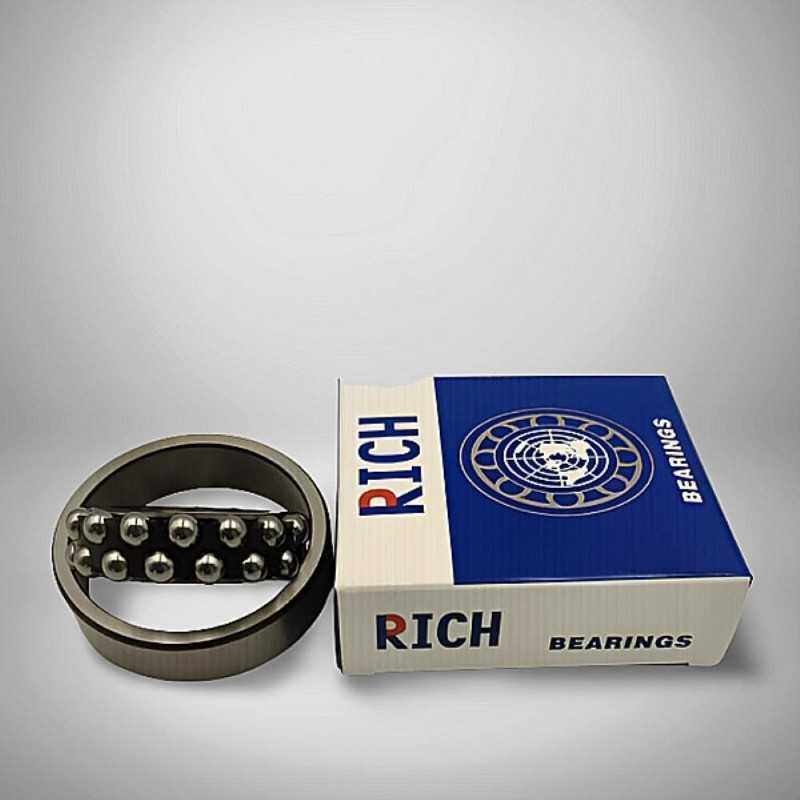

1205 TV RICH Self-Aligning Ball Bearing - 25 x 52 x 15 mm

Technical Specifications:

  • Catalog Code: 1205 TV RICH
  • Brand: RICH
  • Type: Self-aligning ball bearing
  • Bore Diameter (d): 25 mm
  • Outer Diameter (D): 52 mm
  • Width (B): 15 mm
  • Cage: Polyamide (TV)
  • Clearance: CN - Normal clearance
  • Sealing: None
  • Weight: 0.135 kg
  • Country of Origin: China

Product Overview:

The 1205 TV RICH is a high-performance self-aligning ball bearing designed to compensate for angular misalignment between the shaft and the housing. This model features two rows of balls and a common sphered raceway in the outer ring, allowing the inner assembly to tilt freely. This self-aligning capability makes it an essential component for applications where shaft deflection or mounting errors are expected. The bearing is equipped with a fiberglass-reinforced polyamide cage (TV), which ensures low friction, quiet operation, and excellent performance at high speeds. With a standard 25 mm bore and a robust 52 mm outer diameter, this bearing is suitable for a wide range of industrial equipment, agricultural machinery, and power transmission systems. Its open design allows for easy lubrication and heat dissipation, ensuring reliable service in high-speed environments.

Key Performance Advantages:

  • Angular Misalignment Compensation: Specifically engineered to handle static and dynamic misalignment, reducing stress on other mechanical components.
  • Advanced Polyamide Cage: The lightweight TV cage provides superior vibration damping and reduced noise levels compared to traditional steel cages.
  • Low Friction Operation: Designed for minimal heat generation, allowing for higher operating speeds and improved energy efficiency.
  • Standard CN Clearance: Precision-manufactured with normal radial clearance to suit a vast majority of universal industrial applications.

Transparency Note: This bearing is manufactured under the RICH brand. The code 1205 TV is used solely for identification and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
25
Outer Diameter
52
Width
15
Weight
0,135
Cage
Polyamide Cage
Category
Self-Aligning Ball Bearing
