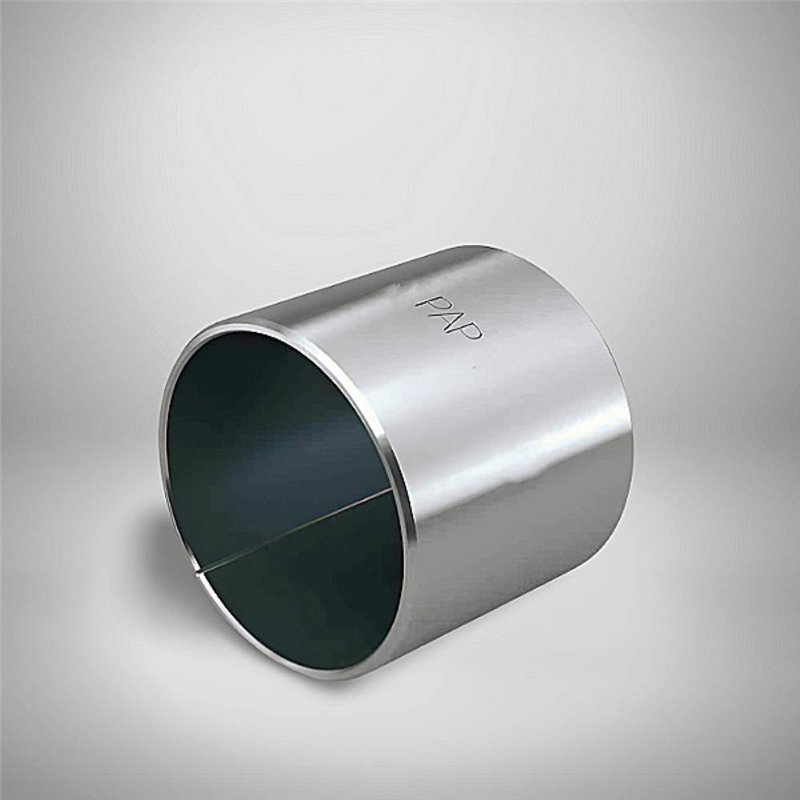

PAP 1825 P10 RICH 18x20x25 PAP1825P10 RICH
zoom_out_map
PAP 1825 P10 RICH 18x20x25 PAP1825P10 RICH

PAP 1825 P10 RICH 18x20x25

Type: Thin Wall Bush
Model: PAP 1825 P10 RICH
Bore: 18 mm
Material: PTFE on Steel Back
Brand: RICH
Origin: China
RICH
PAP1825P10
€1.18
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

PAP 1825 P10 RICH Thin Wall Bush - 18 x 20 x 25 mm

Technical Specifications:

  • Catalog Code: PAP 1825 P10 RICH
  • Brand: RICH
  • Type: Thin wall dry sliding bush
  • Dimensions: 18 x 20 x 25 mm
  • Inner Diameter (d): 18 mm
  • Outer Diameter (D): 20 mm
  • Width (L): 25 mm
  • Material: PTFE on steel back (DU series)
  • Lubrication: Self-lubricating (Maintenance-free)
  • Weight: 0.012 kg
  • Country of Origin: China

Key Performance Advantages:

  • Maintenance-Free Dry Sliding: The PTFE-based sliding layer provides permanent lubrication, eliminating the need for oil or grease and ensuring clean operation.
  • Extended Load Support: The 25 mm width offers a generous contact surface, effectively distributing radial loads to minimize shaft wear and improve assembly stability.
  • Precision Composite Build: Combines a high-strength steel backing with a sintered bronze interlayer for optimized heat dissipation and superior bonding of the sliding layer.
  • Compact Profile: With a wall thickness of only 1 mm, this bush is ideal for applications where radial space is limited but high durability is required.

Transparency Note: This product is manufactured under the RICH brand. The code PAP 1825 P10 is used for identification and interchange purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
18
Outer Diameter
20
Width
25
Category
Thin wall bush
