RAXF 712 RICH 12x18x14,2

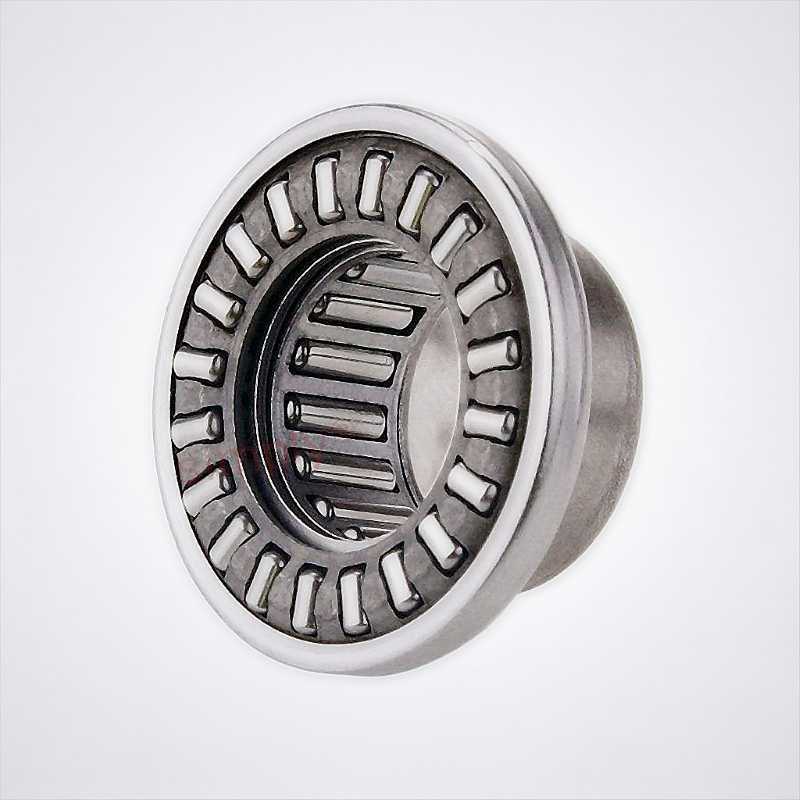

RAXF 712 RICH Combined Bearing – 12 × 18 × 14.2 mm

RAXF 712 RICH is a combined bearing designed for robust operational performance. Dimensional and structural characteristics correspond to the 12 × 18 × 14.2 mm specification.

Technical Specifications:

• Brand: RICH
• Type: Combined bearing
• Model: RAXF 712 RICH
• Inner Diameter (d): 12 mm
• Outer Diameter (D): 18 mm
• Total Width (H): 14.2 mm
• Outer Ring Width (C): 4.2 mm
• Flange Diameter (D1): 27.5 mm
• Weight: 0.018 kg
• Country of Origin: China

Performance Characteristics:

• Load Profile: Simultaneous management of radial loads and axial thrust
• Structural Design: Integrated needle roller and axial bearing unit
• Spatial Efficiency: Low-profile construction for compact mechanical envelopes
• Material Type: High-carbon chrome bearing steel
• Application Interface: Precision-engineered for small-scale industrial motion control and precision tools

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with any original equipment manufacturer. Country of origin: China.
