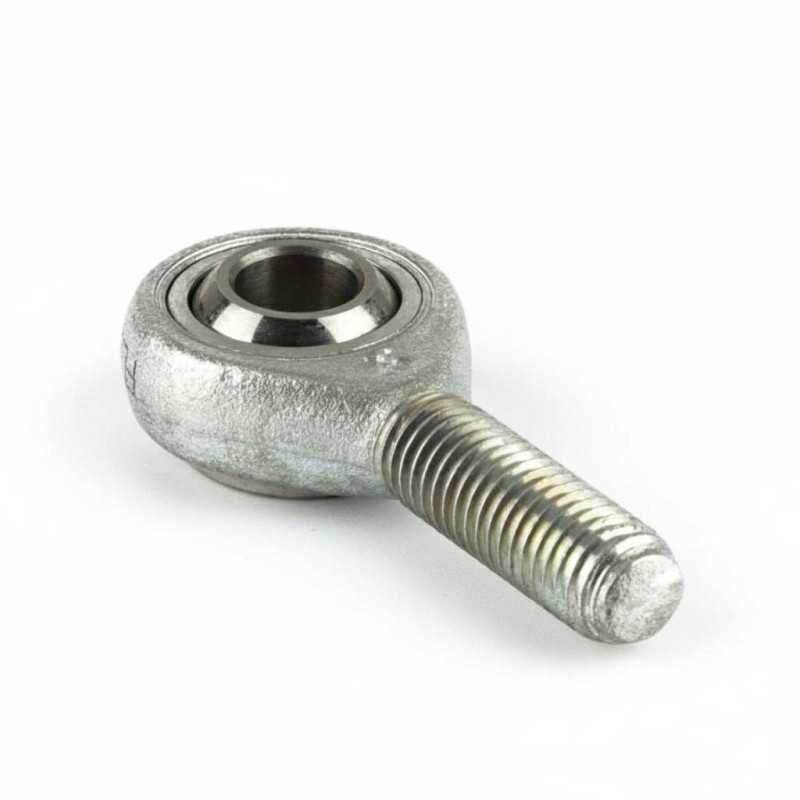

RGAXSW 10 C2 RICH – Rod End | Thread Size: M10 GAXSW10C2 RICH
zoom_out_map
RGAXSW 10 C2 RICH – Rod End | Thread Size: M10 GAXSW10C2 RICH

RGAXSW 10 C2 RICH – Rod End | Thread Size: M10

Type: Rod End with Male Thread (Maintenance-Free)
Model: RGAXSW 10 C2 RICH
Dimensions: 10 mm Bore x 48 mm Height
Material: Zinc Plated Steel/PTFE
Brand: RICH
Origin: China
RICH
GAXSW10C2
€11.34
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

RGAXSW 10 C2 RICH – Rod End – 10 x 28 x 48 mm

Technical Specifications:

  • Type: Rod end with male thread (Maintenance-free)
  • Brand: RICH
  • Model Designation: RGAXSW 10 C2
  • Inner Diameter (d): 10 mm
  • Outer Diameter (A): 28 mm
  • Height to Axis (F): 48 mm
  • Thread Size: M10
  • Thread Length (GL): 28 mm
  • Outer Ring Width (C): 10.5 mm
  • Inner Ring Width: 14 mm
  • Friction Pair: Steel/PTFE
  • Internal Clearance: C2 (Smaller than normal)
  • Dimensional Series: K
  • Weight: 0.062 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Male-threaded rod end housing manufactured from high-strength steel with a protective zinc-plated surface finish.
  • Sliding Configuration: Maintenance-free design incorporating a steel-on-PTFE friction pair, specifically engineered for high pressure and tension loads.
  • Clearance Specification: Precision-engineered with C2 internal clearance, offering a tighter fit than standard configurations for improved stability.
  • Dimensional Format: Technical profile compliant with dimensional series K standards for industrial articulation.

Transparency Note:

Transparency Note: This rod end is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
10
