22224 MB W33 RICH 120x215x58

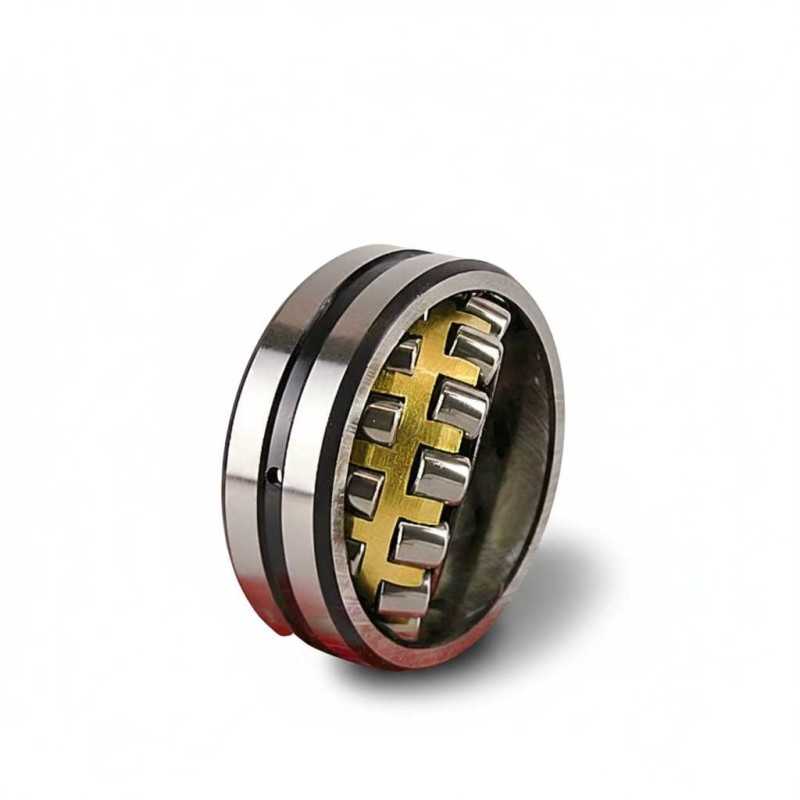

22224 MB W33 RICH – Spherical Roller Bearing – 120 x 215 x 58 mm

Technical Specifications:

• Type: Spherical roller bearing
• Brand: RICH
• Model Designation: 22224 MB W33
• Inner Diameter (d): 120 mm
• Outer Diameter (D): 215 mm
• Width (B): 58 mm
• Bore Configuration: Cylindrical bore
• Cage Material: Brass (inner ring guided)
• Lubrication Feature: W33 (Annular groove and lubrication holes in outer ring)
• Operating Temperature: Max. 200°C
• Weight: 9.02 kg
• Country of Origin: China

Construction Features:

• Component Design: The assembly is engineered with an outer ring lubrication groove and oil delivery holes, structurally capable of operating up to a maximum temperature of 200°C.
• Internal Configuration: The design incorporates two rows of heavy-duty symmetrical rollers managed by a solid machined brass cage guided on the inner ring.
• Dimensional Profile: The physical layout is structured around a 120 mm cylindrical bore, a 215 mm outer diameter, and a width profile of 58 mm.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
