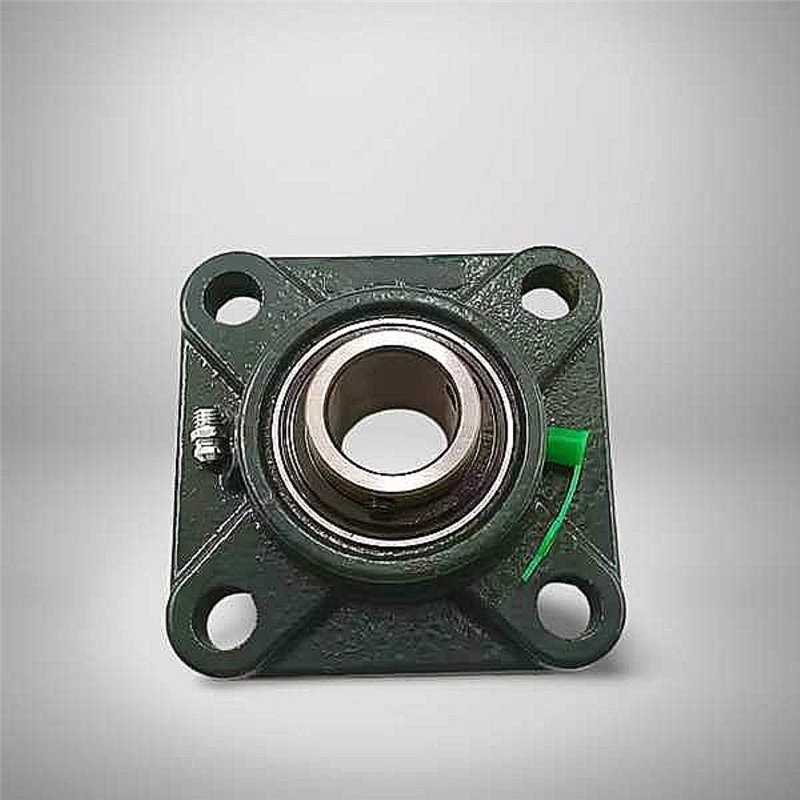

UCF215 RICH Cast Iron Bearing Unit - Square Flange - 75 mm Shaft Diameter

Technical Specifications:

  • Brand: RICH
  • Type: Cast Iron Bearing Unit (Square Flange)
  • Model: UCF215
  • Shaft Diameter (d): 75 mm
  • Housing Length (L): 200 mm
  • Bolt Hole Spacing (J): 159 mm
  • Flange Height (A): 56 mm
  • Flange Edge Thickness (A1): 22 mm
  • Bolt Hole Diameter (N): 19 mm
  • Weight: 5.41 kg
  • Country of Origin: China

Key Performance Advantages:

  • Heavy-Duty Construction: Robust **cast iron** square flange housing ensures high strength and stability for demanding environments.
  • Easy Installation: Square flange (UCF type) simplifies mounting on flat surfaces using four bolts.
  • Shaft Compatibility: Designed to fit a **75 mm shaft**, offering a reliable solution for conveying and industrial power transmission.
  • Misalignment Compensation: The insert bearing can accommodate initial static shaft misalignment for easier assembly.

Transparency Note

The UCF215 bearing unit is manufactured by RICH in China to meet stringent quality and dimensional standards, ensuring reliable performance.

Data sheet

Inner Diameter
75
