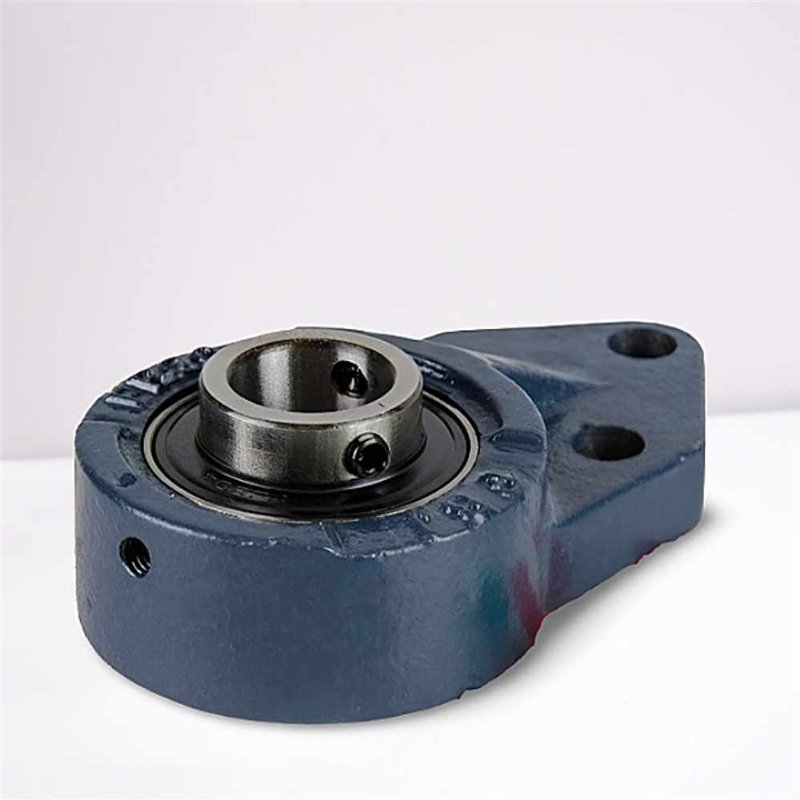

UCFB 207 RICH Cast Iron Flanged Bearing Unit - 35 mm Bore

Technical Specifications:

  • Brand: RICH
  • Type: Cast Iron Flanged Bearing Unit (Square)
  • Model: UCFB 207
  • Inner Diameter (d): 35 mm
  • Housing Material: Cast Iron
  • Clearance: CN (Normal Clearance)
  • Cage: Steel
  • Overall Height (H): 55 mm
  • Bolt Hole Spacing (J): 46 mm
  • Dimension (A): 34 mm
  • Dimension (A1): 15 mm
  • Dimension (H1): 32 mm
  • Dimension (L2): 45 mm
  • Dimension (F2): 144 mm
  • Weight: 1.3 kg
  • Country of Origin: China

The UCFB 207 RICH is a heavy-duty Cast Iron Flanged Bearing Unit manufactured by RICH. This robust unit features a square, cast iron housing that ensures exceptional rigidity and stable performance, perfect for simplified four-bolt mounting onto machine frames.

Designed to accommodate a 35 mm shaft, the UCFB 207 RICH provides reliable support for demanding industrial power transmission applications, including large conveyors, heavy processing equipment, and agricultural machinery. The dense cast iron construction, coupled with a steel cage and CN (Normal) clearance, delivers superior vibration damping and structural strength, resulting in a durable and low-maintenance industrial component.

Key Performance Advantages:

  • Heavy-Duty Housing: Robust cast iron construction offers exceptional structural strength and vibration damping.
  • Simplified Mounting: Square flanged design allows for easy, secure four-bolt installation on flat surfaces.
  • Shaft Compatibility: Precision-engineered for a 35 mm shaft diameter (UC 207 insert).
  • Industrial Stability: Durable solution ideal for heavy-load applications requiring high rigidity.

Data sheet

Inner Diameter
35
Weight
1,3
