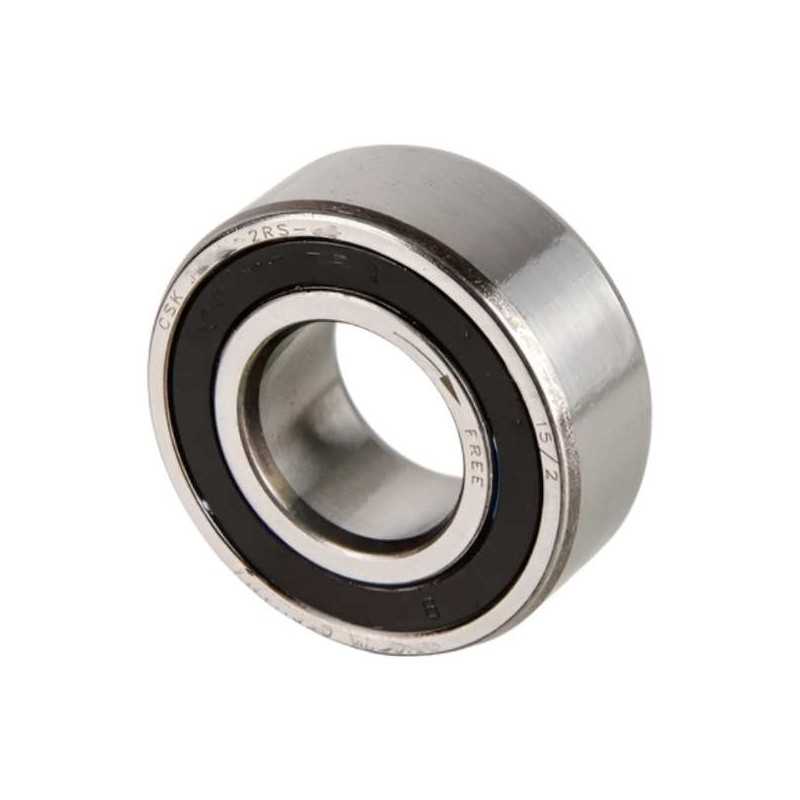

CSK 17 2RS RICH Ball Bearing Freewheel Clutch – 17 × 40 × 17 mm
Technical Specifications:
- Brand: RICH
- Type: Ball bearing freewheel clutch
- Model: CSK 17 2RS RICH
- Inner Diameter (d): 17 mm
- Outer Diameter (D): 40 mm
- Width (B): 17 mm
- Sealing: 2RS (Double-sided rubber contact seals)
- Weight: 0.031 kg
- Country of Origin: China
Performance Characteristics:
- Clutch Type: One-way freewheel
- Internal Mechanism: Sprag-type locking elements
- Bearing Integration: Combined ball bearing and freewheel unit
- Sealing Configuration: 2RS contact type for contaminant exclusion
- Mounting Interface: Standard press-fit configuration
- Torque Directionality: Single-direction engagement
CSK 17 2RS RICH is a ball bearing freewheel clutch with contact rubber seals. Dimensional and structural characteristics correspond to the 17 × 40 × 17 mm specification.
Additional Technical Data:
- Designation: CSK 17 2RS
- Bore Type: Cylindrical
- Material: Bearing steel
- Lubrication: Factory-filled grease
Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with the original equipment manufacturer.
