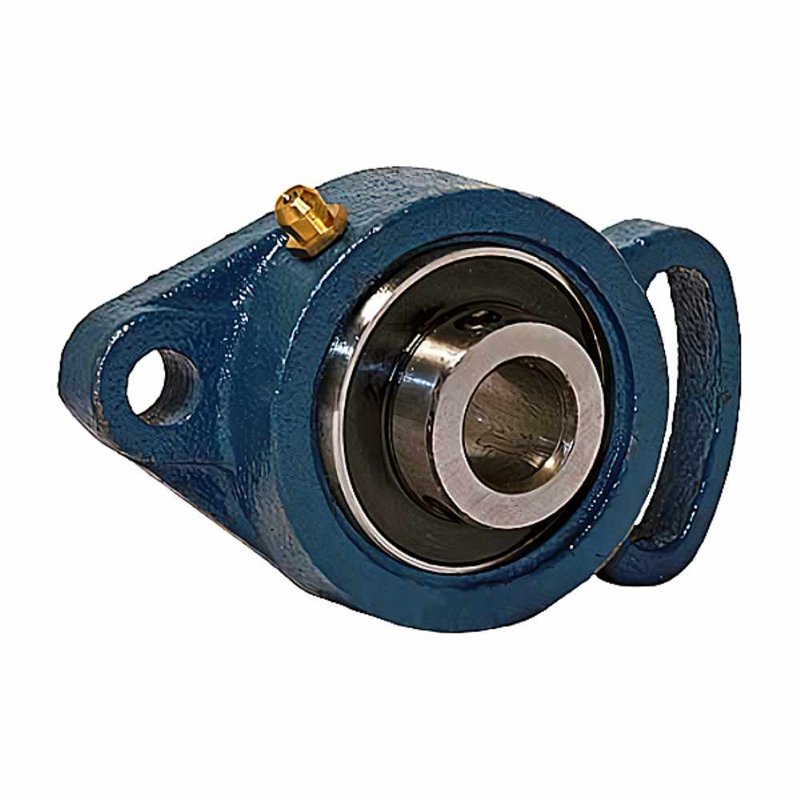

UCFA206 RICH Cast Iron Bearing Unit - 30 mm
Technical Specifications:
- Brand: RICH
- Type: Cast Iron Bearing Unit
- Inner Diameter (d): 30 mm
- Housing Length (L): 72 mm
- Housing Overall Width (A): 31 mm
- Base to Center Height (A1): 14 mm
- Overall Length (L2): 83 mm
- Bolt Hole Spacing (J): 115 mm
- Overall Height (F2): 141 mm
- Bolt Hole Diameter (N): 13 mm
- Weight: 0.96 kg
- Cage: Steel
- Clearance: C3 - greater than normal
- Sealing: Double-sided lip seal with outer flinger shield
- Country of Origin: China
The UCFA206 RICH is a robust cast iron bearing unit with a round two-bolt flanged housing, designed for reliable performance in industrial and agricultural applications. The cast iron housing provides strength and stability, making it a durable solution for supporting rotating shafts. The round flange is ideal for mounting on machine frames or walls where a round mounting surface is preferred. This unit features a C3 greater than normal clearance, which is beneficial for accommodating higher speeds, temperature variations, and moderate misalignment. The double-sided lip seals with outer flinger shields provide enhanced protection against contaminants. The bearing unit is pre-assembled and ready for installation, simplifying mounting and reducing downtime.
Key Performance Advantages:
- Durability: Robust cast iron construction provides strength and resilience in demanding environments.
- C3 Clearance: The greater-than-normal clearance is ideal for higher-speed and high-temperature applications.
- Effective Sealing: Double-sided seals with outer shields provide excellent protection against contaminants.
- Easy Installation: Pre-assembled unit with bolt holes for quick and simple mounting.
