LS 7095 RICH 70x95x5,25 LS7095 RICH
search
  • LS 7095 RICH 70x95x5,25 LS7095 RICH

LS 7095 RICH 70x95x5,25

RICH
LS7095
€3.04
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

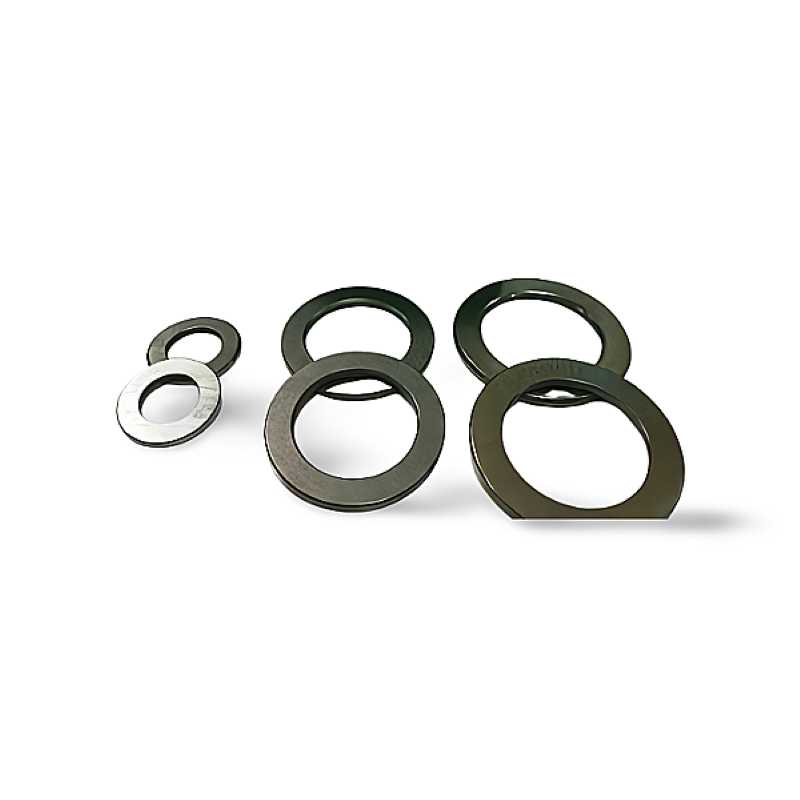

LS 7095 RICH Axial Bearing Washer - 70x95x5,25 mm

Technical Specifications:

  • Product Type: Axial Bearing Washer
  • Model Designation: LS 7095
  • Brand: RICH
  • Bore Diameter (d): 70 mm
  • Outer Diameter (D): 95 mm
  • Thickness (H): 5.25 mm
  • Country of Origin: China

The LS 7095 RICH is a precision-engineered axial bearing washer designed to serve as a high-quality, hardened raceway surface. It is typically paired with axial (thrust) needle roller and cage assemblies in situations where the adjacent machine components lack the sufficient hardness or finish required for a proper bearing raceway. With compact dimensions of 70 mm bore, 95 mm outer diameter, and a slim 5.25 mm thickness, the LS 7095 RICH is built to facilitate high axial load support and low friction within a minimal axial space. This component is crucial for ensuring the reliable and extended service life of the corresponding thrust bearing in demanding applications.

Key Performance Advantages:

  • Precision Raceways: Provides a hardened, finely ground surface for optimal thrust bearing performance.
  • Axial Load Support: Facilitates smooth operation and high capacity under thrust forces.
  • Compact Dimensions: Ideal 70x95x5,25 mm size for small-scale thrust applications.
  • RICH Quality: A high-quality component essential for maximizing thrust bearing life.

Data sheet

Inner Diameter
70
Outer Diameter
95
Width
5,25
Weight
0,123
Category
Axial Bearing Washer
