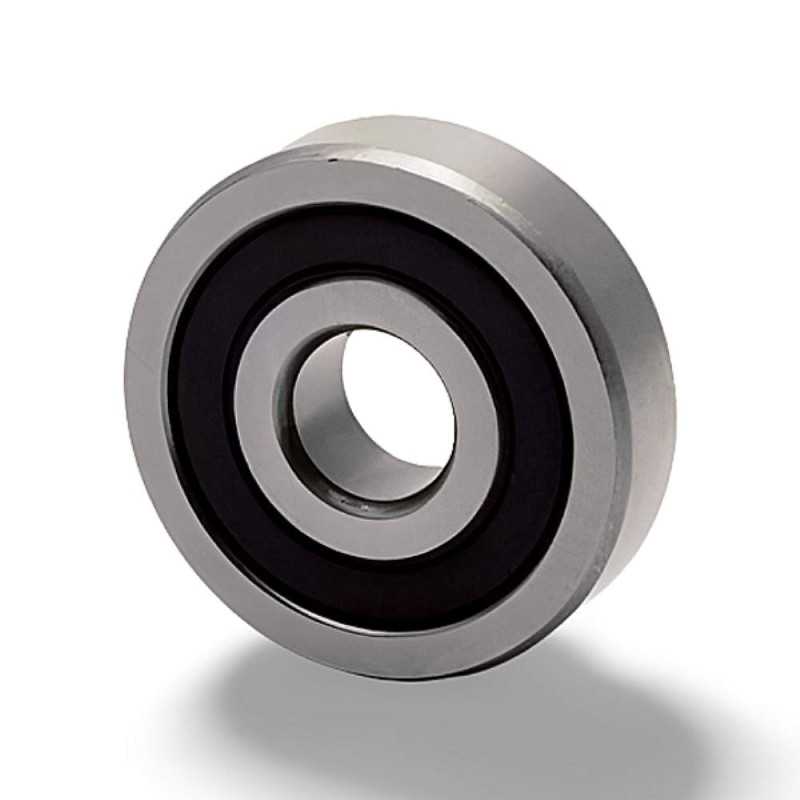

LR203-2RS RICH Track Roller – 17 x 47 x 12 mm with Rounded Outer Ring
The LR203-2RS RICH is a precision-engineered track roller bearing ideal for linear motion systems and cam follower applications. Featuring a rounded outer ring, this design helps to minimize edge stress and allows for smooth operation, even with slight track irregularities. Equipped with double-sided rubber contact seals (2RS), it offers reliable protection against dust and contaminants, ensuring a longer service life and consistent performance. This bearing has a 17 mm inner diameter (ID), a 47 mm outer diameter (OD), a 12 mm width, and weighs approximately 0.109 kg. Manufactured to high-quality standards in China.
Key Specifications:
- Type: Track Roller Bearing
- Dimensions: 17 mm (ID) x 47 mm (OD) x 12 mm (Width)
- Weight: 0.109 kg
- Sealing: Double Rubber Contact Seals (2RS)
- Outer Ring Profile: Rounded
- Country of Origin: China
Key Advantages:
- Smooth Operation: The rounded outer ring ensures minimal friction and smooth movement along the track surface.
- Reduced Edge Stress: The design of the outer ring helps distribute load evenly, reducing stress concentrations on the track edges.
- Effective Sealing: The double 2RS rubber seals provide excellent protection against dust, dirt, and other contaminants, prolonging bearing life.
- Reliable Performance: Built for consistent and dependable operation in demanding linear motion applications.
- Versatile Application: Suitable for a wide range of linear guides and cam follower systems.
- Durable Construction: Manufactured with quality materials for long-lasting performance.
Data sheet
Inner Diameter
17
Outer Diameter
47
Width
12
Weight
0,109
Sealing
Lip Seal On Both Sides
