GE 20 ES 2RS RICH 20x35x16
Rating:
(0)
EUR €
- EUR €
- USD $

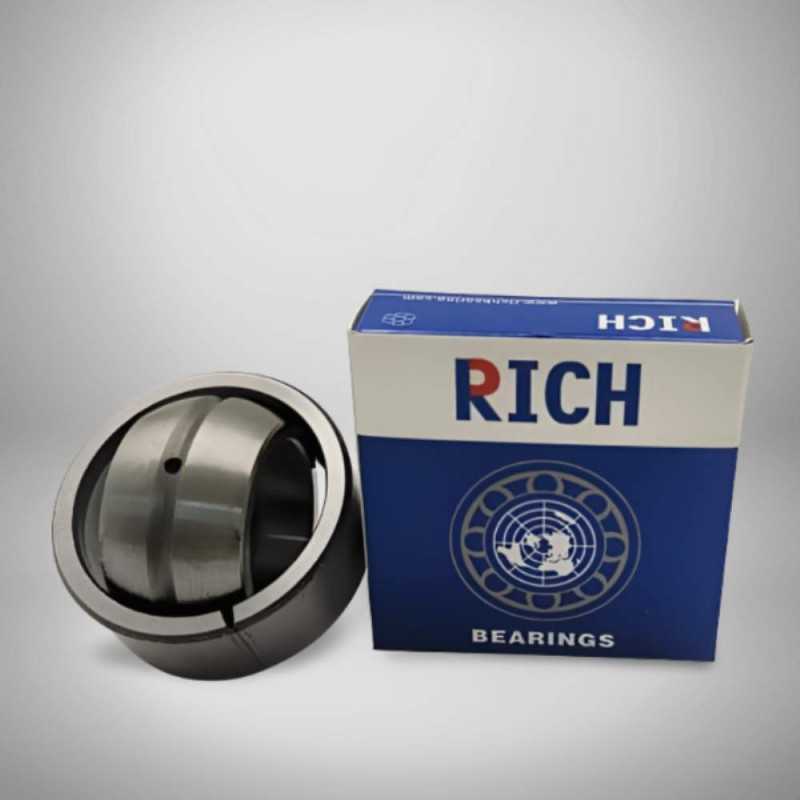

GE 20.ES-2RS RICH Spherical Plain Bearing - 20 x 35 x 16 mm
The GE 20.ES-2RS RICH is a sealed spherical plain bearing designed to accommodate heavy static or dynamic loads and permit oscillating and tilting movements. This bearing has key dimensions of 20 mm inner diameter, 35 mm outer diameter, and a width of 16 mm. The outer ring width (C) is 12 mm. It weighs 0.062 kg and is made in China. It features steel/steel sliding contact surfaces and is equipped with double-sided rubber contact seals (2RS) for enhanced protection against contaminants.
Key Specifications:
- Bearing Type: Spherical Plain Bearing
- Model:** GE 20.ES-2RS RICH
- Inner Diameter (d):** 20 mm
- Outer Diameter (D):** 35 mm
- Width (B):** 16 mm
- Outer Ring Width (C):** 12 mm
- Friction Pair:** Steel/Steel
- Sealing:** Double-sided rubber, contact (2RS)
- Weight:** 0.062 kg
- Country of Origin:** China
Key Features:
- Steel/Steel Contact:** Suitable for heavy loads and harsh operating conditions.
- Sealed Construction (-2RS):** Features double-sided rubber contact seals for effective protection against dust, dirt, and moisture, extending bearing life and reducing maintenance.
- Self-Lubricating (Requires Lubrication):** Designed to be lubricated for optimal performance and extended life.
- Accommodates Misalignment:** Permits angular and axial movement, compensating for misalignment between components.
- Robust Construction:** Capable of withstanding significant forces.
- Versatile Application:** Used in various heavy machinery, construction equipment, and industrial applications.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
20
Outer Diameter
35
Width
16
Weight
0,06
