10-T5-620 RICH | Timing Belt Polyurethane 10-T5-620 RICH
search
  • 10-T5-620 RICH | Timing Belt Polyurethane 10-T5-620 RICH

10-T5-620 RICH | Timing Belt Polyurethane

RICH
10-T5-620
€5.48
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

The minimum purchase order quantity for the product is 10.

Rating:
(0)

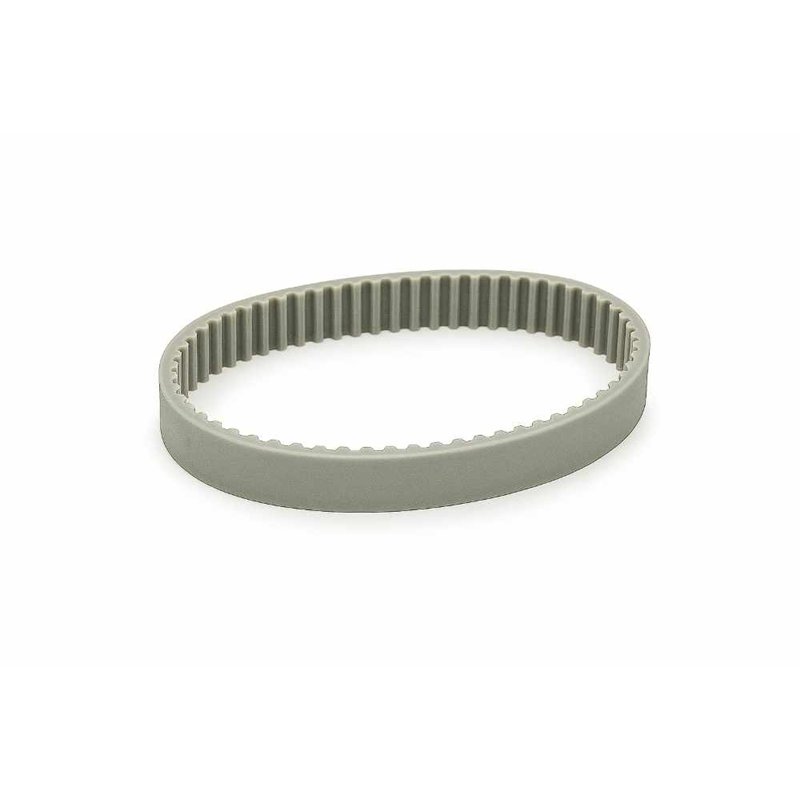

10-T5-620 RICH Polyurethane Timing Belt - T5 Profile - 620 mm Length

Technical Specifications:

  • Brand: RICH
  • Type: Timing Belt, Polyurethane
  • Model: 10-T5-620
  • Profile: T5 (Trapezoidal Tooth)
  • Pitch Length (Lp): 620 mm
  • Pitch (t): 5 mm
  • Nominal Width: 10 mm
  • Number of Teeth: 124
  • Belt Thickness (hs): 2.2 mm
  • Tooth Height (ht): 1.2 mm
  • Weight: 0.018 kg
  • Country of Origin: China

The 10-T5-620 RICH is a precision Polyurethane Timing Belt manufactured by RICH. This belt is engineered for lightweight, high-accuracy synchronous drives, making it ideal for linear motion systems, small automation equipment, and precision machinery.

This model features the standard T5 profile, characterized by a 5 mm pitch and a robust 10 mm nominal width. The belt has a total pitch length of 620 mm and 124 teeth. Its construction from high-quality polyurethane provides exceptional wear resistance, excellent flexibility, and high resistance to abrasion and chemicals compared to rubber belts. With precise tooth geometry and minimal weight, the 10-T5-620 RICH ensures highly accurate indexing and reliable, quiet operation over a long service life.

Key Performance Advantages:

  • Polyurethane Material: Offers superior wear resistance, chemical stability, and long life.
  • Precise Positioning: T5 profile ensures highly accurate synchronization for indexing and motion control.
  • Dimensions: 10 mm width and 620 mm pitch length for reliable compact drives.
  • Low Maintenance: Provides clean, low-vibration operation with minimal upkeep required.
