NUP 304 E C3 RICH 20x52x15
Rating:
(0)
EUR €
- EUR €
- USD $

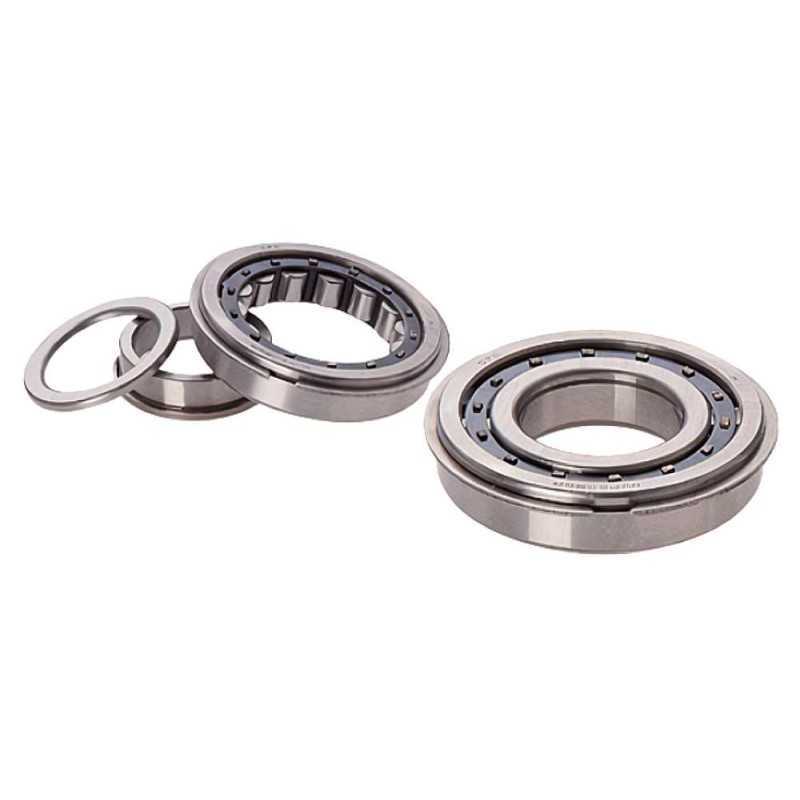

NUP304 C3 RICH Single Row Cylindrical Roller Bearing - 20 x 52 x 15 mm
Technical Specifications:
- Brand: RICH
- Type: Single Row Cylindrical Roller Bearing
- Dimensions: 20 x 52 x 15 mm
- Weight: 0.172 kg
- Cage: Steel
- Clearance: C3 (Greater than Normal)
- Reinforced Execution: Yes
- Country of Origin: China
The NUP304 C3 RICH is a robust single row cylindrical roller bearing designed for applications that require high radial load capacity and axial locating capabilities. The NUP design features two integral flanges on the inner ring and one separable flange on the outer ring, allowing the bearing to effectively locate the shaft axially in both directions. Built with a reinforced execution and a durable steel cage, this bearing is engineered for demanding conditions and extended service life. The C3 clearance, which is greater than normal, makes it an excellent choice for environments with temperature fluctuations or slight misalignment, as it provides additional space for thermal expansion.
Key Performance Advantages:
- High Radial Load Capacity: Cylindrical rollers offer a large contact area, enabling the bearing to withstand significant radial forces.
- Axial Locating Function: The NUP design secures the shaft axially in both directions, simplifying the overall machine design.
- Reinforced Durability: The reinforced construction ensures reliable operation in heavy-duty or high-impact applications.
- C3 Clearance: The greater-than-normal internal clearance is ideal for applications with thermal expansion or potential misalignment, preventing premature wear.
Data sheet
Inner Diameter
20
Outer Diameter
52
Width
15
Weight
0,172
Roller Rows
Single Row
Category
Single Row Cylindrical Roller Bearing
