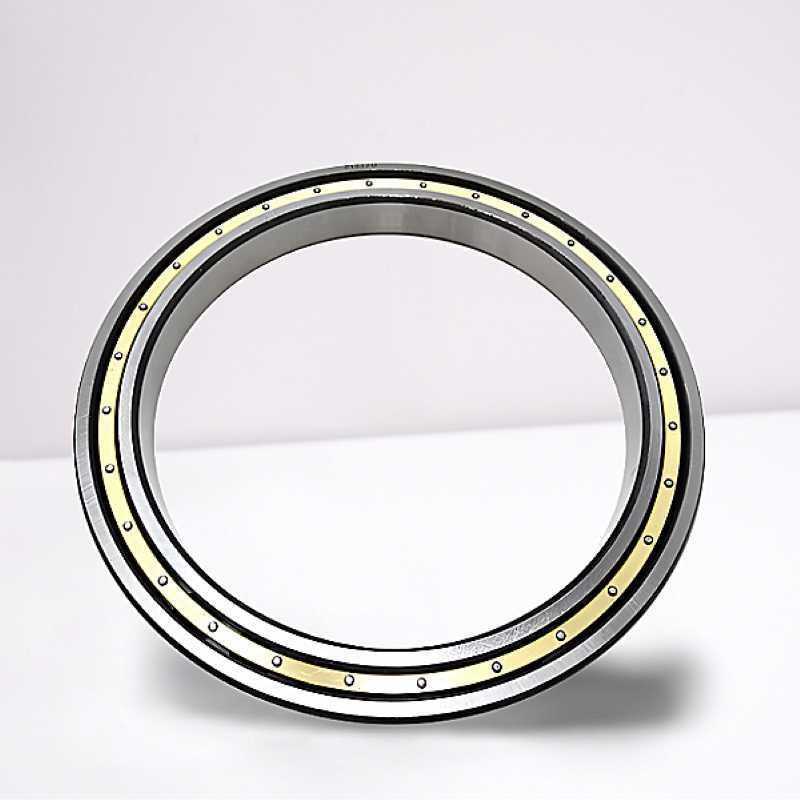

6838 M C3 190x240x24 61838M RICH
zoom_out_map
6838 M C3 190x240x24 61838M RICH

6838 M C3 190x240x24

Type: Thin-Section Ball Bearing (Brass Cage)
Model: 6838.M.C3 RICH
Dimensions: 190 x 240 x 24 mm
Clearance: C3 (Increased)
Brand: RICH
Origin: China
RICH
61838M
€68.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

6838.M.C3 RICH Extra-Thin Section Deep Groove Ball Bearing - 190 x 240 x 24 mm

Technical Specifications:

  • Catalog Code: 6838.M.C3 RICH
  • Brand: RICH
  • Type: Single row deep groove ball bearing (Thin-section series)
  • Bore Diameter (d): 190 mm
  • Outer Diameter (D): 240 mm
  • Width (B): 24 mm
  • Cage: Machined Brass (M), guided by rolling elements
  • Internal Clearance: C3 (Greater than Normal)
  • Sealing: Open (None)
  • Weight: 2.502 kg
  • Country of Origin: China

Key Performance Advantages:

  • Machined Brass Cage (M): Unlike standard steel cages, the machined brass cage offers superior mechanical strength and improved lubrication properties. It is specifically designed to withstand high centrifugal forces and harsh vibration environments.
  • Enhanced Thermal Clearance (C3): The C3 internal clearance provides the necessary space for thermal expansion of the components during continuous operation, preventing premature failure or seizing in high-temperature applications.
  • Optimized Thin-Section Profile: With a cross-section of only 25 mm (radial) for a 190 mm bore, this bearing enables the design of lightweight and compact large-scale machinery, such as rotary tables and large industrial gearboxes.
  • High Running Accuracy: Despite its large size, the precision-ground raceways ensure low friction and smooth rotation, critical for maintaining the efficiency of the entire drivetrain.
  • Open Configuration for Versatile Lubrication: Being an open bearing, it allows for seamless integration into oil-circulating systems or customized grease lubrication setups, ensuring optimal heat dissipation.

Transparency Note: This product is manufactured under the RICH brand. The code 6838.M.C3 is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
190
Outer Diameter
240
Width
24
Weight
2,502
Ball Rows
Single Row
Cage
Brass
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
