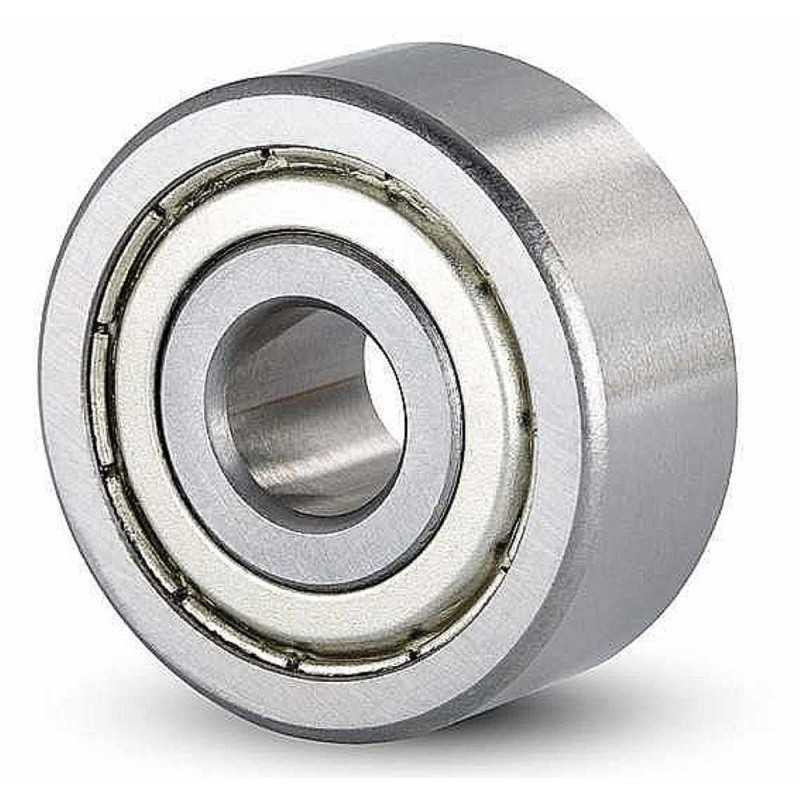

LR5201 X ZZ RICH 12x35x15,9 LR5201XZZ RICH
zoom_out_map
LR5201 X ZZ RICH 12x35x15,9 LR5201XZZ RICH

LR5201 X ZZ RICH 12x35x15,9

Type: Track Roller
Model: LR5201 X ZZ RICH
Bore: 12 mm
Profile: Cylindrical
Brand: RICH
Origin: China
RICH
LR5201XZZ
€4.65
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

LR5201 X ZZ RICH Track Roller - 12 x 35 x 15.9 mm

Technical Specifications:

  • Catalog Code: LR5201 X ZZ RICH
  • Brand: RICH
  • Type: Track roller (Double row ball bearing design)
  • Inner Diameter (d): 12 mm
  • Outer Diameter (D): 35 mm
  • Width (B): 15.9 mm
  • Outer Ring Profile: Cylindrical (X designation)
  • Sealing: ZZ (Double-sided non-contact metal shields)
  • Weight: 0.084 kg
  • Country of Origin: China

Key Performance Advantages:

  • Cylindrical Outer Profile: The "X" suffix indicates a flat cylindrical outer ring, providing an increased contact surface area for improved load distribution on flat tracks.
  • Double Row Ball Geometry: Built with a double row internal structure to support higher radial and axial loads while ensuring stable rotation.
  • Shielded Protection (ZZ): Features non-contact metal shields on both sides, offering protection against larger debris while maintaining low friction for higher speed capability.
  • Durable Construction: The thick-walled outer ring is specifically engineered to handle the high stress and impact typical of track and roller applications.

Transparency Note: This product is manufactured under the RICH brand. The code LR5201 X ZZ is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
12
Outer Diameter
35
Width
15,9
Sealing
Cover On Both Sides
