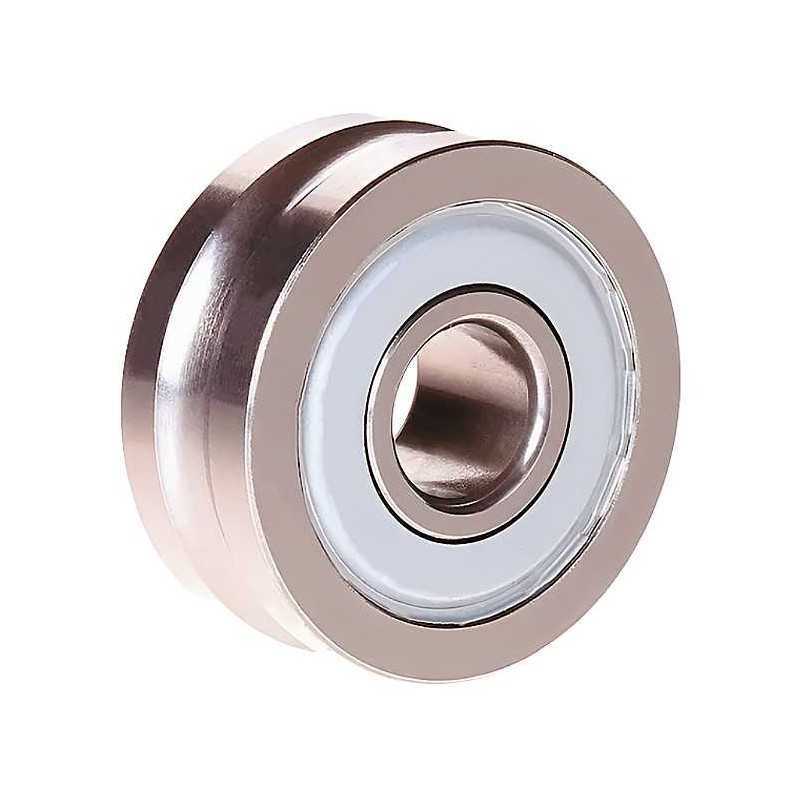

LFR5201-12 ZZ RICH Track Roller with Profiled Outer Ring - 12 x 35 x 15.9 mm
Technical Specifications:
- Catalog Code: LFR5201-12 ZZ RICH
- Brand: RICH
- Type: Track Roller
- Bore Diameter (d): 12 mm
- Outer Diameter (D): 35 mm
- Total Width (B/C): 15.9 mm
- Shaft Diameter (ds): 12 mm (Compatible rail diameter)
- Sealing: ZZ (Double-sided metal shields, non-contact)
- Weight: 0.069 kg
- Country of Origin: China
Key Performance Advantages:
- Gothic Arch Profile: The outer ring is precision-engineered with a gothic arch groove, specifically designed to run on 12 mm diameter cylindrical shafts or linear rails, ensuring stable two-point contact.
- High Axial and Radial Capacity: Built as a double-row angular contact ball bearing, it provides superior rigidity and the ability to handle combined loads in complex linear motion systems.
- Low Friction ZZ Shields: Equipped with non-contact metal shields that protect the internal ball circuits from large particles while allowing for high-speed operation without increasing frictional heat.
- Enhanced Stability: The 15.9 mm width offers a robust footprint, making it ideal for heavy-duty cam drives, material handling systems, and industrial guidance units.
Transparency Note: This product is manufactured under the RICH brand. The code LFR5201-12 ZZ is used for identification purposes and does not imply affiliation with other manufacturers.
