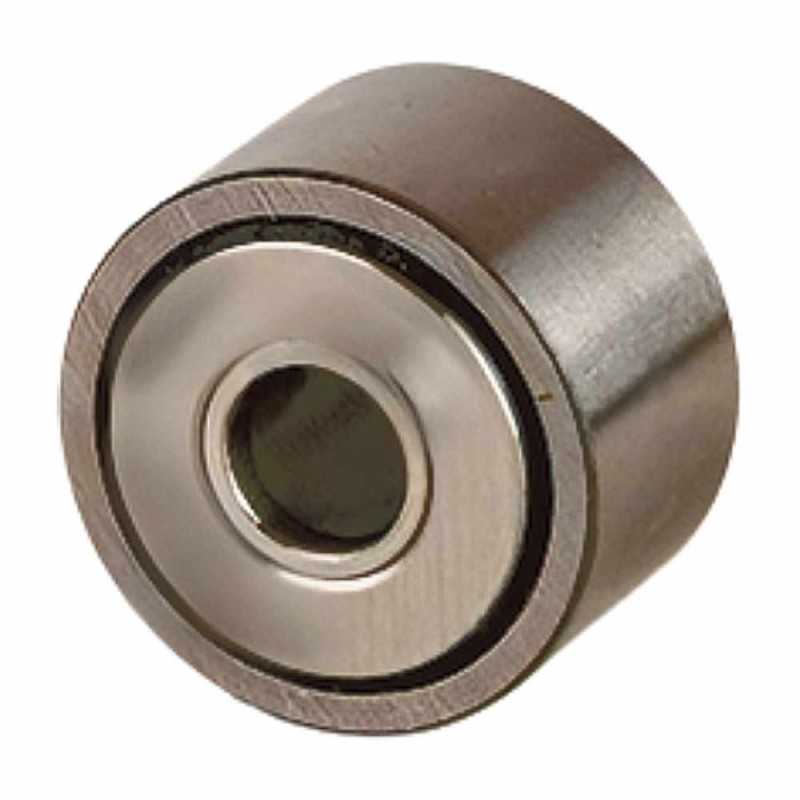

NART5UUR RICH Yoke Roller - 5 x 16 x 12 mm
The NART5UUR RICH is a precision yoke roller engineered for high-load applications. It is built with a steel cage and a thick-walled outer ring to provide robust performance in demanding environments. This yoke roller features a spherical (rounded) outer ring, which is crucial for accommodating minor misalignments and reducing stress on the application. The double-sided rubber contact seals offer excellent protection against contaminants like dirt and dust, ensuring the bearing's longevity and smooth operation by retaining the internal lubricant. This bearing is ideal for use in cam drives, linear guides, and conveyor systems.
Technical Specifications:
- Brand: RICH
- Type: Yoke Roller
- Dimensions: 5 x 16 x 12 mm
- Outer Ring Width (C): 11 mm
- Weight: 0.015 kg
- Cage: Steel
- Outer Ring Profile: Spherical (Rounded)
- Sealing: Double-sided rubber, contact
- Country of Origin: China
Key Performance Advantages:
- High Load Capacity: Designed to withstand heavy radial loads.
- Effective Sealing: Double-sided contact seals protect against contaminants, extending service life.
- Misalignment Tolerance: The rounded outer ring allows for compensation of minor mounting misalignments.
- Robust Construction: Features a durable steel cage for reliable operation in rigorous applications.
Data sheet
Inner Diameter
5
Outer Diameter
16
Width
12
Category
Yoke Roller
