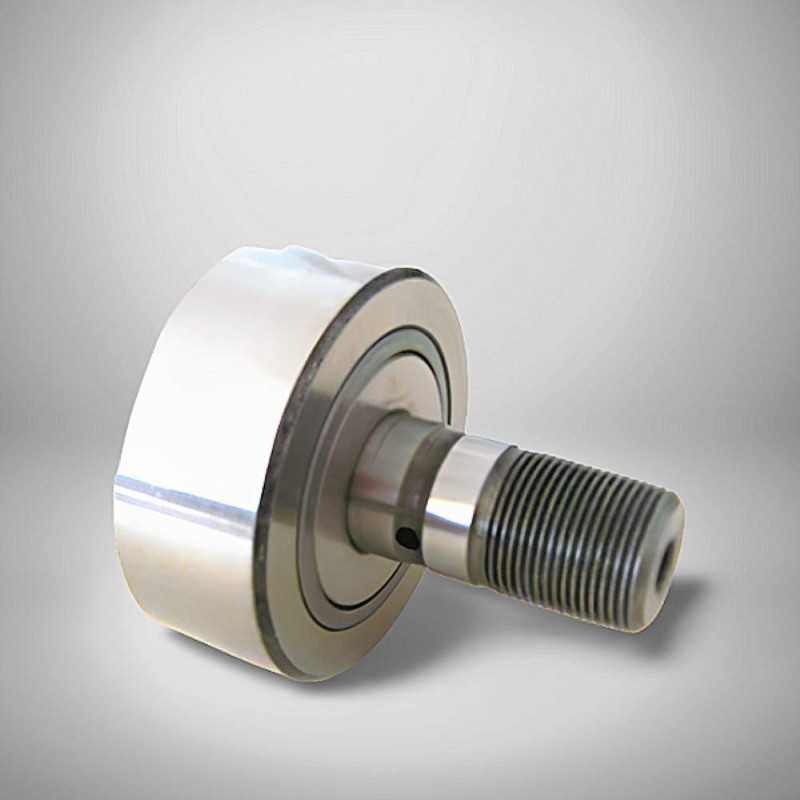

NUKR 40 RICH 18x40x20

NUKR40 RICH – Stud Type Track Roller – 18 x 40 x 20 mm

Technical Specifications:

• Type: Stud type track roller
• Brand: RICH
• Model Designation: NUKR40
• Stud Diameter (d): 18 mm
• Outer Diameter (D): 40 mm
• Roller Width (B): 20 mm
• Overall Stud Length (B1): 58 mm
• Thread Size: M18x1.5
• Cage Material: None (Full complement)
• Outer Ring Profile: Rounded
• Sealing: Double-sided labyrinth seals
• Weight: 0.237 kg
• Country of Origin: China

Product Details:

• Components: Integral mounting stud with an M18x1.5 thread, an outer ring with a rounded profile, a full complement of rolling elements without a cage, and double-sided labyrinth seals.
• Dimensions: 18 mm stud diameter, 40 mm outer diameter, 20 mm roller width, and 58 mm overall stud length.

Transparency Note: This bearing is manufactured under the RICH brand. OE and interchangeable references are provided solely for identification and do not imply affiliation with the original manufacturers.
