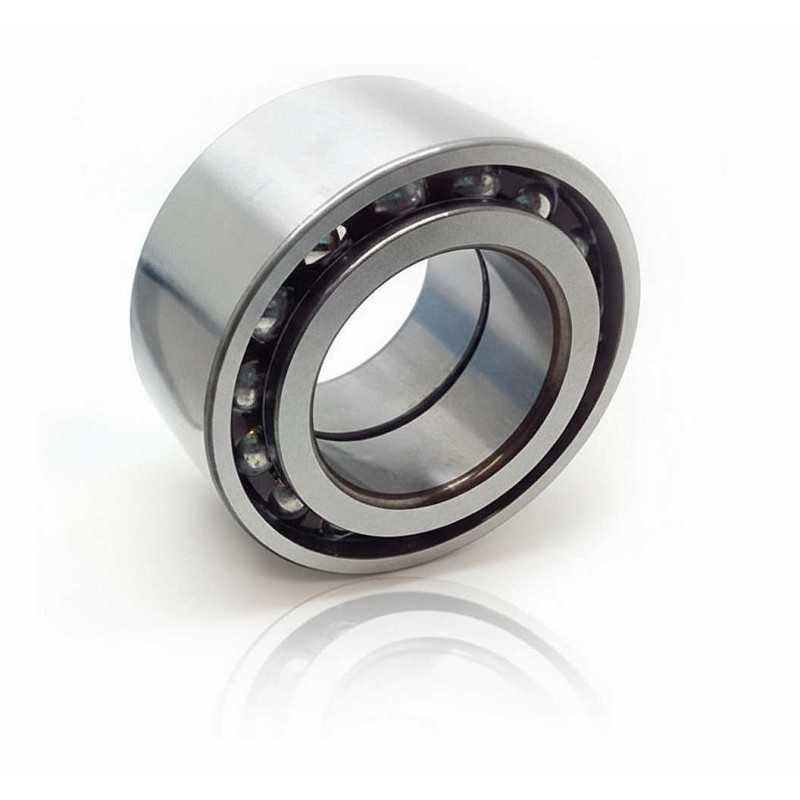

BAH-0058 RICH Double Row Angular Contact Ball Bearing – 40 × 72 × 33/36 mm
Oe References:
Technical Specifications:
- Brand: RICH
- Type: Double row angular contact ball bearing
- Model: BAH-0058 RICH
- Inner Diameter (d): 40 mm
- Outer Diameter (D): 72 mm
- Inner Ring Width (B): 36 mm
- Outer Ring Width (C): 33 mm
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Double row radial ball assembly with asymmetrical ring widths (33/36 mm).
- Internal Geometry: Opposed angular contact raceways designed for bidirectional axial loads and radial stability.
- Material Type: High‑carbon chrome bearing steel.
- Dimensional Format: 40 × 72 × 33/36 mm configuration.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references, if present, are provided solely for identification and do not imply affiliation with other manufacturers.
