  • SS 1204 TN RICH 20x47x14 SS1204-TN RICH

SS 1204 TN RICH 20x47x14

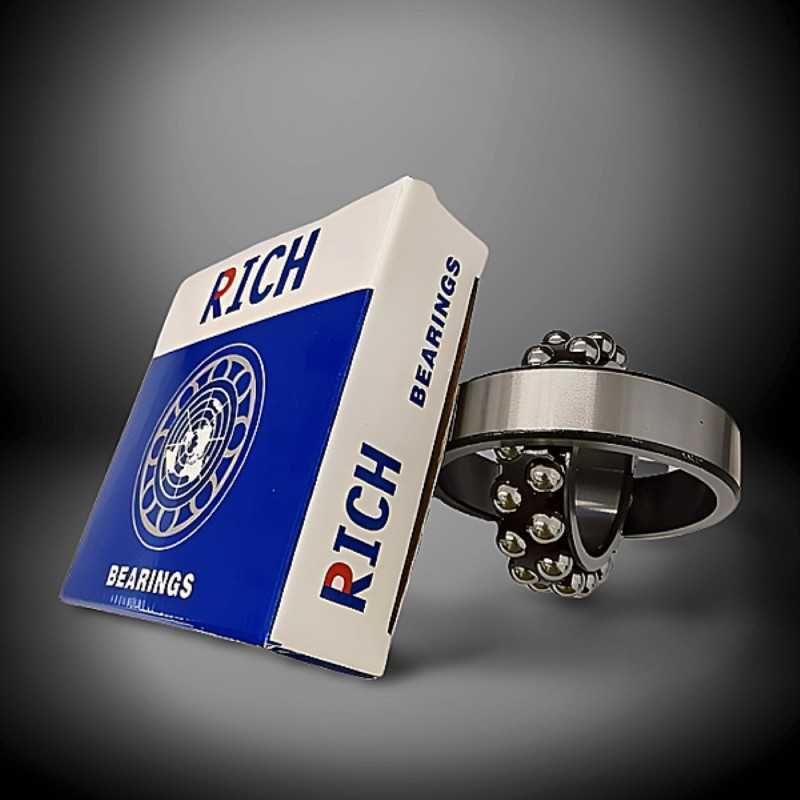

The SS 1204 TN RICH Self-Aligning Ball Bearing (20x47x14 mm) is Stainless Steel with a Polyamide cage, compensating for misalignment.

RICH
SS1204-TN
€12.01
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

SS 1204 TN RICH Self-Aligning Ball Bearing - Stainless Steel - 20 x 47 x 14 mm

Technical Specifications:

  • Brand: RICH
  • Type: Self-Aligning Ball Bearing
  • Model: SS 1204 TN
  • Material: Stainless Steel
  • Dimensions: 20 x 47 x 14 mm
  • Inner Diameter (ID): 20 mm
  • Outer Diameter (OD): 47 mm
  • Width (W): 14 mm
  • Sealing: None (Open)
  • Clearance: CN - normal clearance
  • Cage Material: Polyamide (TN)
  • Weight: 0.118 kg
  • Country of Origin: China

The SS 1204 TN RICH is a premium Stainless Steel Self-Aligning Ball Bearing manufactured by RICH. Featuring dimensions of 20 x 47 x 14 mm, this bearing is engineered to effectively compensate for static and dynamic angular misalignment, which is crucial in applications prone to shaft bending or mounting errors.

Its construction from Stainless Steel guarantees superior resistance to corrosion, moisture, and mild chemical exposure, providing a significant lifespan advantage in wet environments. The self-aligning design, combined with a durable and lightweight polyamide cage (TN), ensures smooth, quiet operation with reduced friction, making it suitable for moderate to higher speeds. With normal internal clearance (CN), the SS 1204 TN RICH is an ideal solution for materials handling, textile machinery, and other systems where reliability and corrosion resistance are top priorities.

Key Performance Advantages:

  • Self-Alignment: Tolerates significant angular misalignment between the shaft and housing.
  • Corrosion Resistant: Full Stainless Steel construction (SS) for reliable use in wet/corrosive settings.
  • Polyamide Cage (TN): Offers light weight, low friction, and quiet running characteristics.
  • Standard Clearance (CN): Optimized for general operating conditions and stability.

Data sheet

Inner Diameter
20
Outer Diameter
47
Width
14
Weight
0,121
Ball Rows
Double Row
Cage
Polyamide Cage
Category
Self-Aligning Ball Bearing
