UC324 RICH 120x260x126

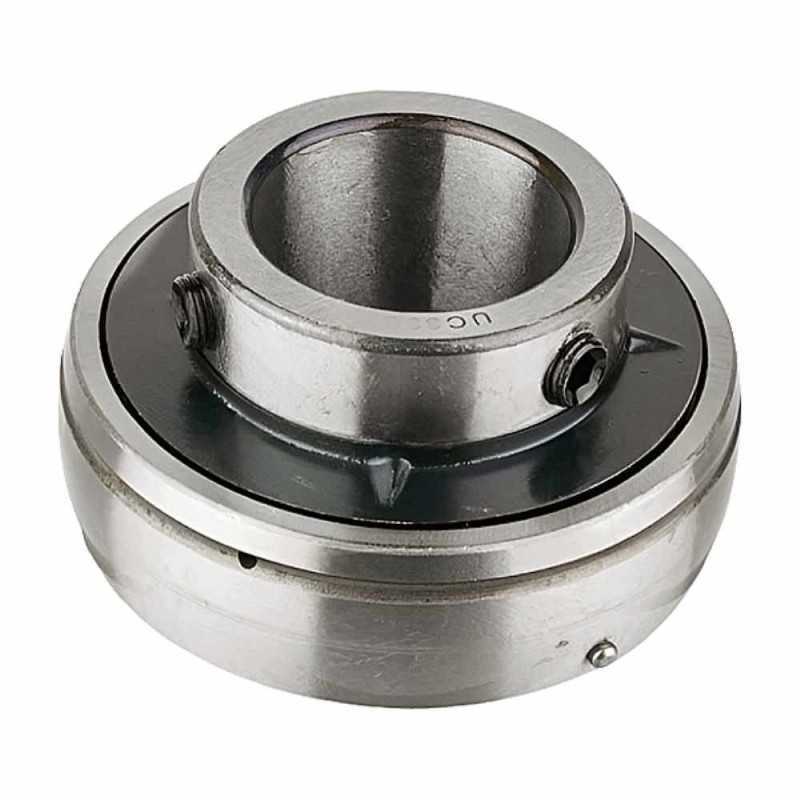

UC324 RICH – Insert Ball Bearing – 120 × 260 × 126 mm

Technical Specifications:

• Type: Insert ball bearing
• Brand: RICH
• Model Designation: UC324
• Inner Diameter (d): 120 mm
• Outer Diameter (D): 260 mm
• Inner Ring Width (B): 126 mm
• Outer Ring Width (C): 64 mm
• Outer Ring Shape: Spherical (Rounded)
• Sealing: Double-sided lip seal with protective plate
• Weight: 18.446 kg
• Country of Origin: China

Construction Features:

• Heavy-Duty Capacity: As part of the 300 series, this UC324 insert is engineered to handle extreme radial and axial loads in high-stress industrial environments.
• Self-Aligning Spherical Outer Ring: The rounded outer diameter allows the bearing to align itself within the housing, compensating for shaft deflections and mounting inaccuracies.
• Extended Inner Ring Design: The wide 126 mm inner ring ensures maximum stability on the shaft and provides a reliable surface for set-screw locking.
• Advanced Protection: Features a robust double-sided lip seal system reinforced with a protective plate to effectively block contaminants while maintaining internal lubrication.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
