  • 2306 K RICH 30x72x27 2306K RICH

2306 K RICH 30x72x27

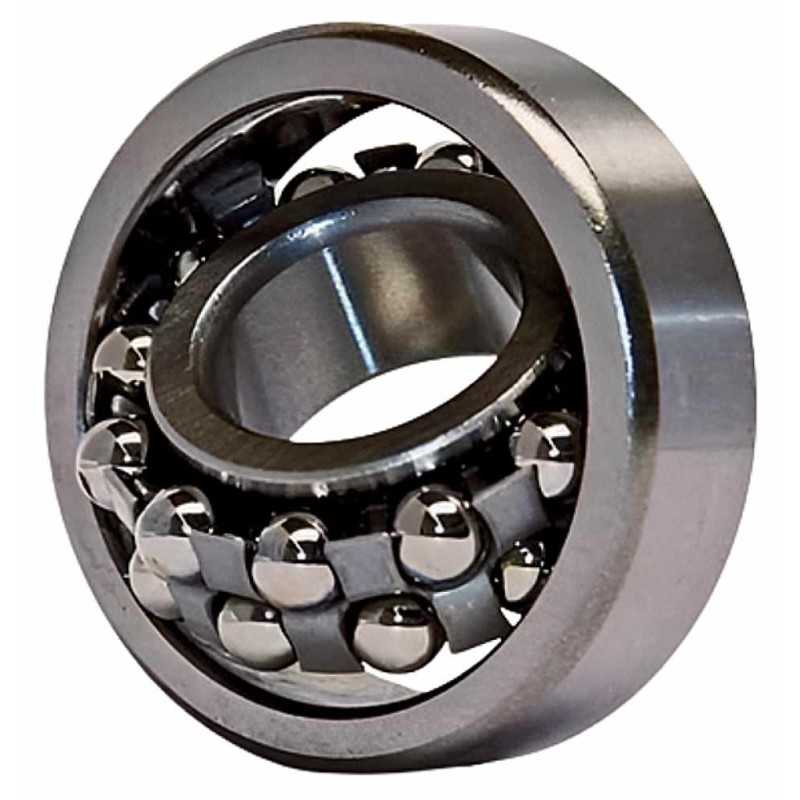

The 2306.K RICH is a self-aligning ball bearing with a 1:12 tapered bore, designed to accommodate misalignment and shaft deflection for reliable performance.

RICH
2306K
€6.51
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

2306.K RICH Self-aligning Ball Bearing - 30 x 72 x 27 mm

Technical Specifications:

  • Bearing Type: Self-aligning Ball Bearing
  • Model Designation: 2306.K
  • Brand: RICH
  • Dimensions: 30 x 72 x 27 mm
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 72 mm
  • Width (B): 27 mm
  • Weight: 0.505 kg
  • Cage: Steel
  • Clearance: CN - Normal clearance
  • Sealing: None (Open)
  • Taper: 1:12
  • Country of Origin: China

The 2306.K RICH is an open-type self-aligning ball bearing with a tapered bore, specifically designed to accommodate angular misalignment and shaft deflection. Its two rows of balls and a common spherical outer ring raceway allow for reliable performance even with slight bending of the shaft. Featuring a durable steel cage, this bearing ensures consistent operation. The 1:12 tapered bore is ideal for mounting with an adapter sleeve on a tapered shaft. With precise dimensions of 30 mm inner diameter, 72 mm outer diameter, and a width of 27 mm, this high-quality RICH bearing is a dependable and durable solution, made in China.

Key Performance Advantages:

  • Self-Aligning Capability: Accommodates angular misalignment and shaft deflection.
  • Tapered Bore (1:12): Simplifies mounting on a tapered shaft with an adapter sleeve.
  • Durable Steel Cage: Ensures robust performance and stability.
  • High Load Capacity: Handles a combination of radial and light axial loads.
  • RICH Quality: A dependable and durable component for reliable operation.

Data sheet

Inner Diameter
30
Outer Diameter
72
Width
27
Weight
0,505
Ball Rows
Double Row
Cage
Steel Cage
Clearance
CN (Normal)
