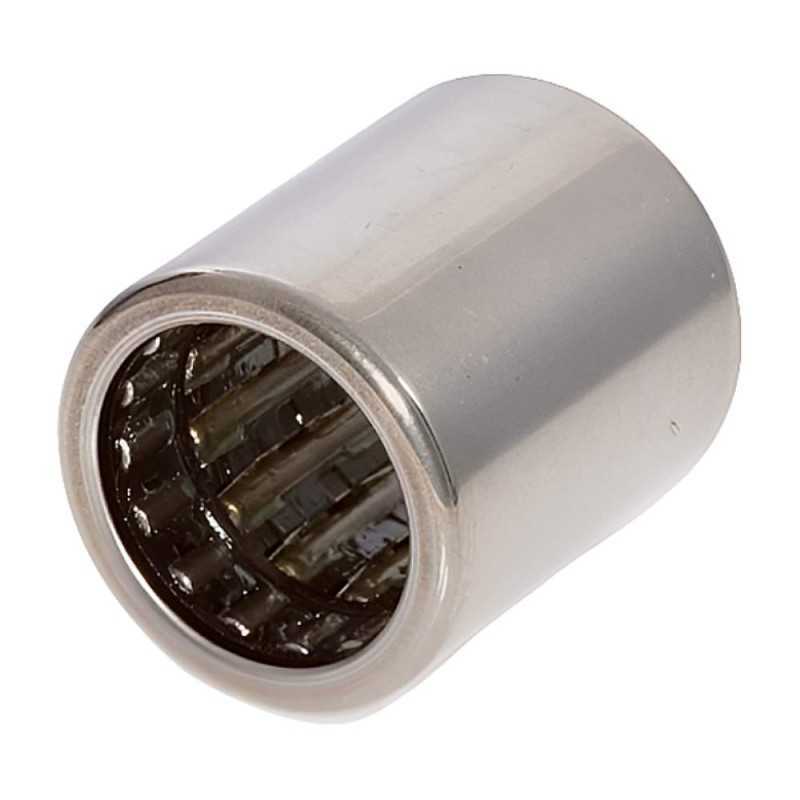

Drawn Cup Roller Clutch with Bearing HFL2530 RICH - 25 x 32 x 30 mm
The HFL2530 RICH is a drawn cup roller clutch integrated with a bearing, designed for applications requiring one-way rotation, backstopping, or indexing capabilities. This compact unit features precisely formed sprags or rollers that allow free rotation in one direction and immediately lock in the opposite direction, providing a reliable clutching action. The integrated needle roller bearing assembly supports significant radial loads, making it a complete and robust solution for various power transmission needs. Its drawn cup outer ring provides a space-saving design and allows for simple, economical installation by pressing it into a housing bore. The dimensions of this unit are 25 mm inner diameter, 32 mm outer diameter, and 30 mm width, with an approximate weight of 0.046 kg. Manufactured in China by RICH.
Key Specifications:
- Type: Drawn Cup Roller Clutch with Bearing
- Dimensions: 25 mm inner diameter x 32 mm outer diameter x 30 mm width
- Weight: 0.046 kg
- Functionality: One-way rotation, backstopping, indexing
- Country of Origin: China
- Brand: RICH
Key Advantages:
- Compact, Space-Saving Design
- Integrated Needle Roller Bearing for high radial load support
- Reliable One-Way Clutch action
- Simple Press-Fit Installation
- Durable Construction
Data sheet
Inner Diameter
25
Outer Diameter
32
Width
30
Weight
0,046
Cage
Steel Cage
Category
Drawn Cup Roller Clutch
